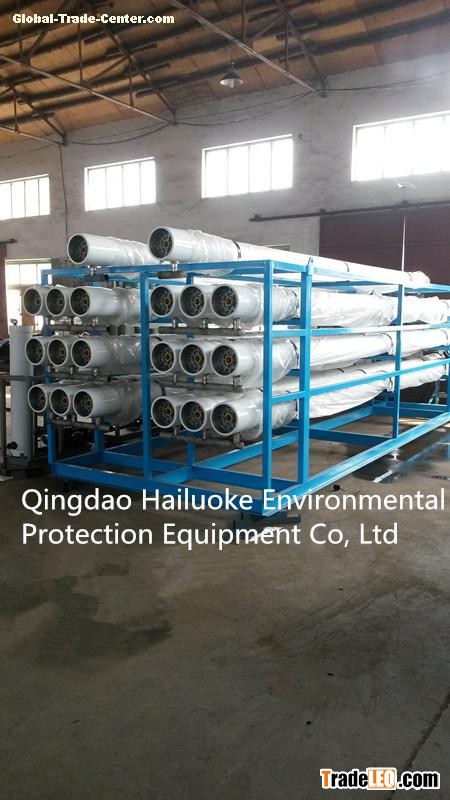

Reverse Osmosis Water Treatment EquipmentEquipment


      Raw waterTDS≤10000ppm

• Produced waterTDS≤200ppm
• Sea water temperature 5°C~45°C
  Rate of desalination≥99.2%
• Power by client demand(Voltage and frequency 380V/50HZ 220V/440/415 60HZ)
• Operating pressure (4.0~6.5MPa)
• Output Capacity(M³/H) 100
• Electro-consumption/ton(Kwh/T) 1.5
• Dimensions L*W*H(mm)  6600*1200*2000

1.Application Range

  Boiler Feed Water.

  food & beverage, brewing fresh water supply.

  Electronic, chemical, pharmaceuticals high purity water supply.

  High salinity water desalination.

2.Technique Parameter

  Application Scope

  TDS≤10000mg/L

  Output Water Quality TDS≤200mg/L. Meet the World Health Organization (WHO) Guidelines for Drinking Water  Quality

  Also can be individually designed according to customer demand.

  Recovery Rate: 50%~75%

  Adapted Seawater temperature: 5.0~35.0°C.

  Freshwater Electricity Consumption/Ton: below 1.5kW·h/m3 .

3.Advantages:

a)          Runs automatically and controlled by PLC

b)          Protection system, plant turns off if it encounters a fault

c)          Energy saving and low noise, no need to heat

d)          Stable running, high desalination and recovery rate with no pollution

e)          Compact structure and saves installation place

f)           Easy to operate, wash RO membrane when turn on and off

g)          Dependable performance and long life time

h)          Highly efficient and low carbon emissions

4.After-sale Service Instructions

1. Provide the entire system maintenance brochure and disk.
2. Provide common spare parts for one year for the new equipment, after one-year guarantee, we offer spare parts with preferential price.
3. Provide lifelong network technical service.
