Brand:King Pigeon
Model:RTU5023
MOQ:2 Pieces
Model: RTU5023

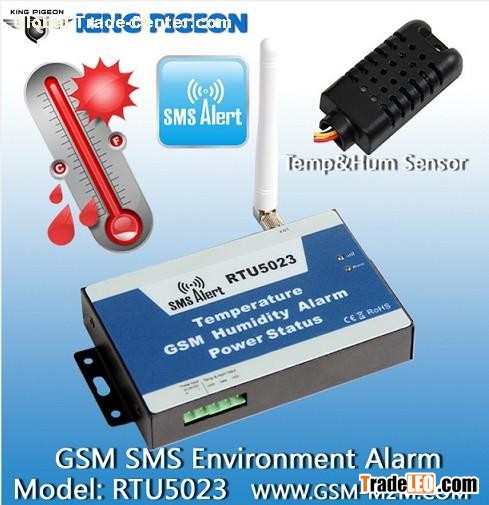

Name:GSM Temperature control unit with high Low temperature control
Inquiry onsite Environment with a FREE Call from Your Mobile Phone!
Interval Report onsite Environment to Your Mobile Phone by SMS!
High-Low Temperature Humidity Voltage with SMS alert!
King Pigeon Hi-Tech.Co.,Ltd is a professional GSM Alarm, wifi camera alarm, GSM SMS Controller Alarm, GSM GPRS 3G M2M, GSM GPRS 3G RTU Automation, GSM GPRS 3G Telemetry Data Logger, GSM 3G Senior Telecare, GSM 3G Senior Telehealth OEM ODM Manufacturer since 2005.
The GSM SMS Environment Alarm is special for remotely monitoring onsite temperature, humidity, power status through wireless GSM Network. When the temperature, humidity, power voltage exceed high threshold or low threshold value, will send SMS alert to upto 10 preset mobile phone immediately.
Just dial from Authorized User number, the GSM Environment Alarm will reject at the first “Ring”, no communication cost, and then return the current temperature, humidity, power status or voltage. Moreover, it can report onsite environment interval or daily.
The GSM Environment Alarm can be used for solar power monitoring, DC power voltage monitoring, temperature monitoring, humidity monitoring, Class Room, Public Room, Waiting Room, Hospital, Stations, Fresh Food Warehouse, Office, Meeting Room, Laboratory, Library and anywhere that need monitoring temperature or control temperature in expected range.
| Mainly Features of the GSM SMS temperature swicth : 1. Can be operated from anywhere, no distance limitation; 2. No call charges for inquiry. the GSM Environment Alarm rejects the call from authorized number then return onsite temperature, humidity, and power voltage on the first 'ring'; 3. Multiple applications. (temperature, humidity, power status, solar panel, dc voltage); 4. Up to 10 authorized phone numbers, 5 can be used to receive call or SMS,and 5 can be used to call and SMS while alarm occurrence; 5. One Temperature & Humidity sensor input, measures temperatures from -40-80°C,0.5°C accuracy, Relative Humidity from 0-99RH%, accuracy is 3%; 6. External AC Power status monitoring, AC On/OFF will send SMS to authorized phone numbers; 7. Inbuilt MCU monitoring the DC input Voltage value, measure range is 9-24VDC, no need additional sensor to save cost; 8. Timer Report—Can setup every x hours automatically send its status/Value to the authorized numbers; 9. Support remotely read historic data via SMS; 10. Rechargeable Backup Battery inside can last 8hours; 11. Secure - Using caller ID and password for identification, unknown callers are ignored; 12. Programmable by SMS Commands or APPs with password protection; 13. based on GSM Network, applied to many applications. |
Specifications of the GSM GSM SMS temperature swicth :
| Parameter item | Reference scope |
| DC Power supply | 9~24VDC, recommend 12VDC1A |
| Power consumption | 12V input Max. 50mA/Average30mA |
| Frequency range | 850/900/1800/1900Mhz |
| SIM Card | Supporting 3V SIM Card |
| Antenna | 50 Ω SMA Antenna interface |
| Temperature range | -40-+80 °C |
| Humidity range | Relative humidity 0~90% (condensation free) |
| Temp&Humidity Sensor | Temperature&Humidity Sensor, Model :AM2301 ,Temperatures from -40-80°C(0.5°C accuracy),Relative Humidity from 0-99RH%, accuracy is 3%. |
| Backup Battery | 900mAH, last 8hours |
| Exterior dimension | W130mm*D74mm*H27mm |
| Net Weight | 300 |
