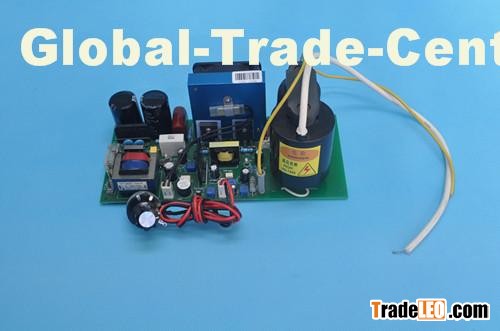

Specification:

size:210x100x90(mm)

weight:1.5kg

Output voltage:

high voltage/frequency 6kv/12khz(adjustable)

power range:0-450W

Protection configuration:

1.high temperature exceed protection

2.voltage exceed protection

3.circuit off and short protection

Adjust methods:

manual adjust or PLC0-5V adjust or PLC4-20MA adjust

Working voltage:

AC220V/50HZ（AC110V/60HZ or can be customized)

Application:

IGBT driving, frequency, wave, voltage and power limit up and down all can be adjusted; Suitable for less than 40g/h of ozone generator
