Brand:zhongjiaxin
Model:SDD/SWD/SKD
MOQ:1 Sets

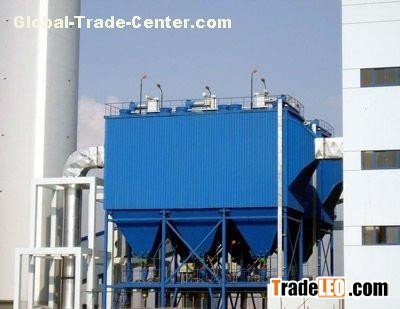

Electric dust collector
1.Can collect less than one micron of dust
2.Every hour can handle 100 cubic meters dust air
3.overhaul period is ten years and the dust removal efficiency were above 99.9%
The data,structure and appreance size of electric dust collector:
Example:SDD type electric dust collector performance parameters
| Model Item | SDD 10×3 | SDD 12.5×3 | SDD 15×3 | SDD 25×3 | SDD 45×3 | ||||
| effective cross sectional area (m2) | 10 | 12.6 | 15.1 | 20.2 | 25.1 | ||||
| capacity×104（m3/h） | 3.24-4.32 | 4.05-5.42 | 4.8-6.46 | 6.45-8.6 | 8.05-10.9 | ||||
| Air speed（m/s） | 0.9-1.2 | ||||||||
| bearingpressure (pa) | -6000-0 | ||||||||
| Dust air temperature (℃) | ≤300 | ||||||||
| design efficiency (%) | ≥99 | ||||||||
| pressure loss (%) | ≤294 | ||||||||
| air leakage ratio（%） | <3 | ||||||||
| No. of electric field/no. of chamber | 3 fileds/chambers | ||||||||
| Electric field effective length (m) | 3.5×3=10.5 | ||||||||
| High voltage power supply sets | 3sets | ||||||||
| High voltage power supply current (A) | 0.1 | ||||||||
| Voltage (KV) | 72 | ||||||||
| Out Size L×W×H (m) | 14.8×5.6×10.41 | 14.8×5.6×11.21 | 14.8×5.6×11.51 | 14.8×5.6×12.51 | 14.8×5.6×13.1 | ||||
Designed to handle high-volume dust loads, a dust collector system
consists of a blower, dust filter, a filter-cleaning system, and a dust
receptacle or dust removal system. It is distinguished from air
cleaners, which use disposable filters to remove dust.
