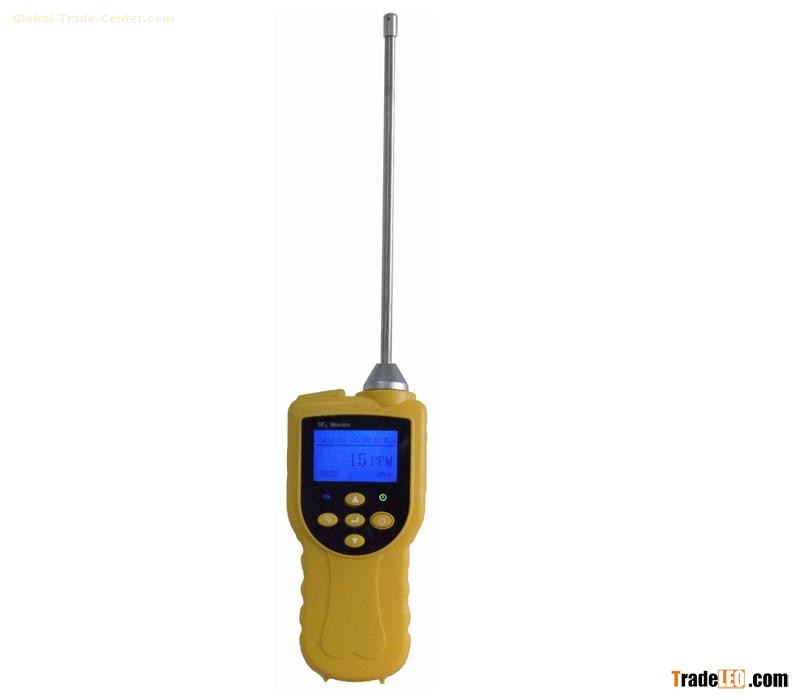

GRI-8323 Portable SF6 gas analyzer is a hand-held instrument which can continually test SF6 gas .This product is applicable to environmental monitoring, industrial production and other occasions , can effectively guarantee the safety of staff from abuse, from loss of production equipment.

SF6 detector adopts pump-style for test gas, adopt imported intelligent digital sensor as sensitive component, and have excellent sensitivity and repeatability; embedded microprocessor control, High reliability; excellent man-machine interface is not only done a full-featured and easy to operate.128*64 Liquid crystal display, Clear display, its compact design and attractive appearance and comfortable feel is the best choice for handheld applications. Build-in high -precision digital temperature and humidity sensors, when does not detect, it’s also a handheld device of temperature and humidity for test occasion.

Main Features：

Adopt advanced 16 bits controller of Ultra-low power

Resolution is 128*64 LCD screen

Adopt imported intelligent digital sensor of high-precision

Can be set high /low alarm point, two levels sound and light alarm.

Calibration concentration can be adjustable, User-friendly calibration.

Provide scene temperature and humidity detection

Provide real-time clock display

Battery under-voltage shuts down automatically for protection

Rechargeable Rechargeable

Data storage: 60 data/h, maximum 480 datas.

Industrial Applications：

SF6 high-voltage switch plant, power sector, installation and maintenance units and the electric power test research.

Technical Parameter：

Applicable of gas ：  SF6(0—1000 PPM）

Sensor type ：  NDIR（infrared ）

Sampling way ： Pipe-style

Precision：      1PPM

Response time ：  T90<10S

Indicate way ：LCD display real-time concentration ,LED 、buzzer alarm

Operate environment：--10℃—50℃ 0-95%RH（Non-condensing）

Operate voltage ：DC3.7V Lithium ：1100mAh

Charge time ：6-8 hours

Continuous work hours ： 8 hours above

Sensor life ：   10 years

Dimension :  220*85*40 mm

G.W ：0.34KG

Protection Class : IP65

Certification: CE

Warranty ：12 months
