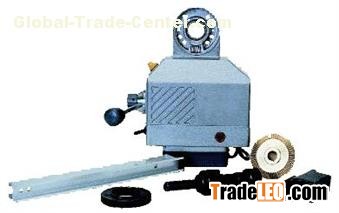

Item: 310-0006

 Increases milling efficiency! No more gear change hassles!

 Gets continuous variable speed at 0 to 120 RPM, and a single high setting of 180 RPM

 Operates horizontally in Y direction

 Fits 15.87mm//5/8″ diameter lead screws

 Model: AS235-Y-220

 Motor: 220-240V, 50Hz

 Torque (FT. LBS): 135

 Maximum Feed Rate (in/min): 24

 Speed Range (RPM): 0-120

 Rapid Speed (RPM): 180

 Leadscrew Diameter (mm//in): 15.87 // 5/8

 Packing Dimension (mm): 300x210X330

 N.W./G.W. (kg): 6.4/7.5

 Loading Qty of 20’ CN: 1140
