Brand:-

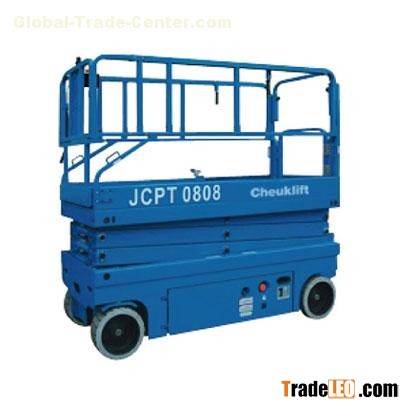

Model:JCPTHD
MOQ:1 Sets
Send Inquiry
| Standard Configuration -Proportional controller -Automatic pot hole protection system -4x2 drive -Emergency stop button -Emergency descending button -Horn -Working chronometer -Transport standard forklift hole -Extended platform -Charge protection -Self-lock door -Total excursion -Tracelessness tyre -Self-actuating brake system -Oil pipe explosion protection system -Fault diagnosis system -Tilt protection -Motor reset protect -Buzzer -Folded rail -Strut bar for safe overhaul | |||||
| Optional Configuration -AC power source connected to platform -Working lamp -Rotary strobe light -Overweight sensor -Air scoop connected with platform | |||||
| Model | Unit | JCPT | JCPT | JCPT | JCPT |
| 0808HD | 1008HD | 1012HD | 1212HD | ||
| Rated capacity | kg | 380 | 230 | 450 | 320 |
| Extend platform Rated | kg | 113 | |||
| capacity | |||||
| Max number of people | 2 | ||||
| Max working height | mm | 8000 | 10000 | 10000 | 12000 |
| Max platform height | mm | 6000 | 8000 | 8000 | 10000 |
| Overall length | mm | 2480 | |||
| Overall length | mm | 810 | 810 | 1150 | 1150 |
| (with outrigger) | |||||
| Overall width | mm | 2210 | 2340 | 2340 | 2470 |
| Over height | mm | 1750 | 1880 | 1860 | 1990 |
| (rail unfold) | |||||
| Overall height | mm | 2270×810 | 2270×810 | 2270×1120 | 2270×1120 |
| (rail fold) | |||||
| Working platform size | mm | 900 | |||
| Platform extend size | mm | 100 | |||
| Ground clearance | mm | 19 | |||
| (stowed) | |||||
| Wheelbase | mm | 1870 | |||
| Min turing radius | mm | 0 | |||
| (inside) | |||||
| Min turing radius | mm | 2190 | 2330 | ||
| (outside) | |||||
| Motor | V/kw | 3-24 | |||
| Drive speed | km/h | 3.5 | |||
| (stowed) | |||||
| Drive speed | km/h | 0.8 | |||
| (lifting) | |||||
| Raising/Falling speed | sec | 22/34 | 22/40 | 30/33 | 30/38 |
| Battery | 4×6V/210Ah | ||||
| Charger | V/A | 24/25 | |||
| Maximum gradeability | % | 25 | |||
| Max ang, , le | ì | 2-3 | |||
| Tyre | mm | 381×127 | |||
| NW | kg | 1950 | 2100 | 2300 | 2730 |
