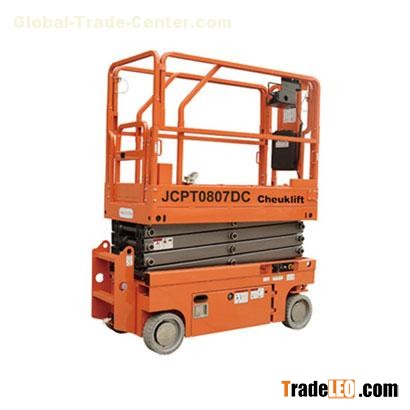

Brand:cheuklift
Model:JCPT0807DC
MOQ:1 Sets
Send Inquiry
| Model | Unit | JCPT0807DC |
| Rated capacity | kg | 230 |
| Extend platform Rated capacity | kg | 113 |
| Max number of people | 2 | |
| Max working height | mm | 7800 |
| Max platform height | mm | 5800 |
| Overall length | mm | 1860 |
| Overall length (with outrigger) | mm | 1840 |
| Overall width | mm | 760 |
| Over height(rail unfold) | mm | 2160 |
| Overall height(rail fold) | mm | 1840 |
| Working platform size | mm | 1670×740 |
| Platform extend size | mm | 900 |
| Ground clearance(stowed) | mm | 90 |
| Wheelbase | mm | 1380 |
| Min turing radius(inside) | mm | 0 |
| Min turing radius(outside) | mm | 1640 |
| Drive motor | V/kw | 24/0.5 |
| Lift motor | V/kw | 3-24 |
| Drive speed(stowed) | km/h | 6 |
| Drive speed(lifting) | km/h | 0.8 |
| Raising/Falling speed | sec | 31/37 |
| Battery | V/Ah | 4×6/210 |
| Charger | V/A | 24/30 |
| Maximum gradeability | % | 25 |
| Max angle | 2-3 | |
| Tyre | mm | 305×100 |
| NW | kg | 1240 |
