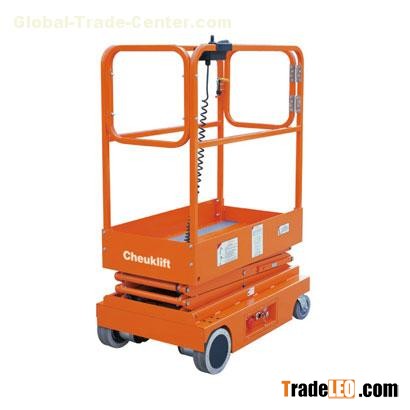

Brand:cheuklift
Model:JCPT3.0
MOQ:1 Sets
Send Inquiry
| 1KG=2.2LB 1INCH=25.4MM | ||
| Model | JCPT3.0（III） | |
| Safe working load | kg | 240 |
| Maximum working height | mm | 5 |
| Maximum platform height | mm | 3 |
| Overall length | mm | 1.14 |
| Overall width | mm | 0.75 |
| Overall height | mm | 1.65 |
| Working platform size | mm | 1.14x0.70 |
| Minimum ground clearance | mm | 0.06 |
| Wheel base | 0.95 | |
| Minimum turning radius (inner wheel/ outer wheel) | 0.50w1.05 | |
| Drive motor | kw | Φ2x24VDc/0.4 |
| Lifting motor | kw | 24VDC/0.8 |
| Driving speed (furling state) | km/h | 4 |
| Lifting state | km/h | 0.8 |
| Lifting/ descending speed | sec | 28/41 |
| Accumulator | Ah | 2x12V/95 |
| Charger | A | 24V/12 |
| Maximum gradeability | 0.3 | |
| Driving wheel | mm | 230x80 |
| Front wheel | in | 6 |
| Overall weight | kg | 418 |
