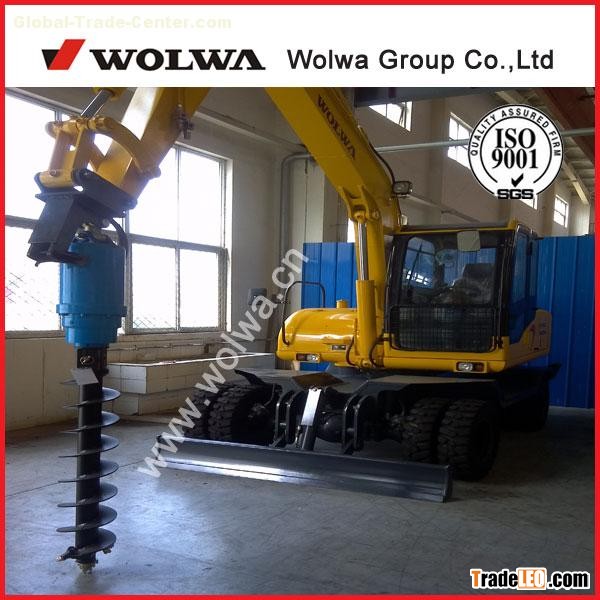

Brand:Wolwa
Model:DLS880-9A3
MOQ:1 Sets
Send Inquiry
| PERFORMANCE PARAMETER | ||
| OPERATING WEIGHT | 7200Kg | 7200 |
| GRAB BUCKET WEIGHT | 390Kg | 390 |
| RATED POWER | 48/2300Kw/rpm | 48/2300 |
| MAX.TORQUE | 230/1800N.m/rpm | 230/1800 |
| OPERATING PRESSURE | 21Mpa | 21 |
| RATED FLOW | 55x2L/min | 55X2 |
| PUMP DELIVERY | 25x2ml/r | 25X2 |
| TRAVELING SPEED | 30Km/h | 30 |
| SWING SPEED | 9.2rpm | 9.2 |
| MAX.TRACTION FORCE | 43.2KN | 43.2 |
| GRADEABILITY | 20° | 20 |
| FUEL TANK | 125L | 125 |
| HYDRAULIC OIL TANK | 105L | 105 |
| WORKING RANGE | ||
| MAX.LOADING WEIGHT | 500Kg | 500 |
| MAX.LOADING RANGE | 6758mm | 6758 |
| MAX.DUMPING HEIGHT | 4721mm | 4721 |
| DIMENSION | ||
| OVERALL LENGTH | 6321mm | 6321 |
| OVERALL WIDTH | 2000mm | 2000 |
| OVERALL HEIGHT(CAB TOP) | 2710mm | 2710 |
| OVERALL HEIGHT(BOOM TOP) | 2730mm | 2730 |
| UNDER BALANCE WEIGHT GROUND CLEARANCE | 985mm | 985 |
| MIN.GROUND CLEARANCE | 280mm | 280 |
| WHEEL base | 2310mm | 2310 |
| THE DISTANCE BETWEEN THE BOTH SIDE OF TYRES | 1560mm | 1560 |
| DOZER BLADE WIDTH | 2024mm | 2024 |
| DOZER BLADE HEIGHT | 310mm | 310 |
| BOOM LENGTH | 3500mm | 3500 |
| ARM LENGTH | 2000mm | 2000 |
| OPENING DIMENSION | 1266mm | 1266 |
| OUTLINE DIMENSION OF GRAB BUCKET | 1500x1020x1600mm | 1500x1020x1600 |
