General

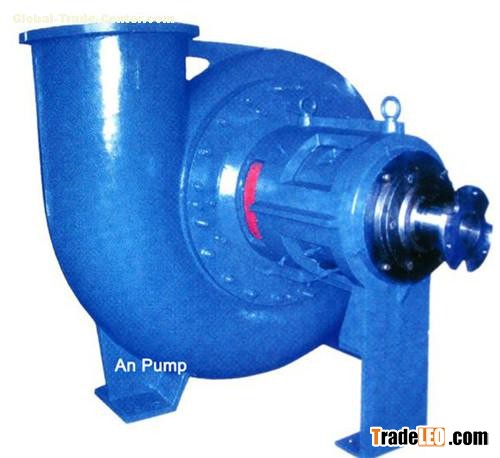

ABFGD series desulfurization pump is horizontal type, single stage single suction centrifugal pump, mainly used for delivering corrosive liquid.

Application:

It can be used for transporting corrosive liquid in industry of steel plant ,power plant, coal industry, desulfurization circulation system, water treatment, chemical process, non-ferrous metal smelting industry, sulfuric acid phosphate fertilizer industry.

Structure

Feature:

1）excellent performance and comparatively high reliability and stability.

2）simple structure, convenient maintenance and reliable operation

3）Excellent performance of corrosion resisting and wear resisting, suitable for transporting different PH medium.

4）The bearing body adopts tubular structure, which will adjust the bearing parts to change the position of impeller in the pump cavity and make the pump be always under high efficiency operating status.

5）The shaft seals can be classified as filler seal, dynamic seal and assembled mechanical seal specially used for desulphurization technology to facilitate users to select suitable shaft seal according to actual condition. It is easy to be installed and maintained without connecting clean industrial flushing water.

Performance

No. Pump Type Capacity

(m3/h) Head

(m) Speed (r/min) Efficiency (%) (NPSH)r (m) Max Power (kw)

1 350ABFGD-24 1280

1600

1920 25.2

24

22.3 740 75

80

81 6.5 200

2 350ABFGD-10 640

1060

960 11.2

10.2

9.1 490 72

78

79 3.4 55

3 400ABFGD-24 1760

2200

2640 25.5

24

22 740 80

82

83 6.8 280

4 400ABFGD-10 1160

1450

1740 11.3

10.5

9.4 490 78

80

81

3.2 75

5 500ABFGD-24 2800

3500

4200 25.8

24

21.6 590 82

85

86 7.1 450

6 500ABFGD-16 2320

2900

3480 18.2

16.5

14.8 490 82

85

86 3.8 75

7 600ABFGD-24 4500

5500

6500 25.5

24

22 590 83

87

88 8.0 710

8 600ABFGD-16 3737

4568

5400 17.6

16.6

15 490 83

87

88 5.5 400

9 700ABFGD-24 6400

8000

9600 25.5

24

21.5 490 84

88.5

89.5 8.0 1000

10 700ABFGD-18 5550

6940

8327 19.2

18

16.2 425 84

88.5

89.5 6.1 630

11 800ABFGD-24 8250

10500

12000 27

24

21.3 490 87.5

89.5

87.5 9.6 1250

12 800ABFGD-18 7156

9100

10400 20.3

18.1

16 425 87.8

89.5

87.5 7.2 800

13 900ABFGD-24 12000

15000

18000 26

24

21.5 370 86

90

90.2 8.3 1800

14 900ABFGD-19 10700

13380

16050 20.7

19.1

17.1 330 86

90

90.2 6.6 1250
