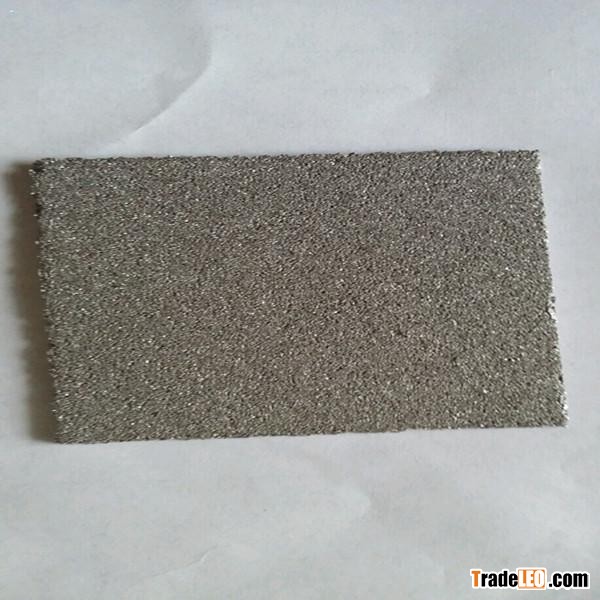

Sintered metal powder filter element

Manfre High Purity Steam Filters incorporate sintered porous stainless steel filter

media that ensures the effective retention of particles. The 316L SS filter elements

provide excellent chemical resistance and mechanical stability due to their special

design. Using Manfre High Purity Steam Filterelement can considerably reduce the

post-filtration costs of your system

Features

Porous sintered stainless steel construction
High flow rate with low differential pressure
High mechanical stability
High temperature range
Available in media grades 10, 20, and 40 µm
Welded end caps either flat end or centering cone
226 with locking flanges or 222 adapters with double "O" ring

Specifications

Nominal Dimensions	10 inch Cartridge	20 inch Cartridge	30 inch Cartridge	40 inch Cartridge
Overall Length 1	10.75 Inch/273 mm	20.75 Inch/527 mm	30.75 Inch/781 mm	40.75 Inch/1035 mm
Outside Diameter	2.5 Inch/63.5 mm	2.5 Inch/63.5 mm	2.5 Inch/63.5 mm	2.5 Inch/63.5 mm
Filtration Area	0.54 Ft2/0.05 m2	1.09 Ft2/0.10 m2	1.63 Ft2/0.15 m2	2.18 Ft2/0.20 m2
Filter Media	316L SS	316L SS	316L SS	316L SS
End-caps, Adapter	316L SS	316L SS	316L SS	316L SS
Maximum Forward Differential Pressure in Air, Oxygen or Nitrogen	250 psid  (17.23 Bar)	250 psid (17.23 Bar)	250 psid (17.23 Bar)	250 psid (17.23 Bar)
Maximum Reverse Differential Pressure in Air Oxygen or Nitrogen	250 psid  (17.23 Bar)	250 psid  (17.23 Bar)	250 psid  (17.23 Bar)	250 psid  (17.23 Bar)
Maximum Operating Temperatures	450°C (842°F) @ 125 PSIG	450°C (842°F) @ 125 PSIG	450°C (842°F) @ 125 PSIG	450°C (842°F) @ 125 PSIG
Cartridge Connections Double O-Ring	226 with Locking Flange or 222	226 with Locking Flange or 222	226 with Locking Flange or 222	226 with Locking Flange or 222
End caps	Flat end cap or centering cone end cap	Flat end cap or centering cone end cap	Flat end cap or centering cone end cap	Flat end cap or centering cone end cap Contact Infomation Send Inquiry Company name:Baoji fitow Metal Co.,ltd Status:[Offline] [Send message] [Chat] Business contact:tony (Ms.) Telphone: Mobile: Fax: Area: Caribbean Region-Bermuda Address:Tai Cheng road Wei Bin district, Baoji city, SHAANXI provinc Zip:721010
