Brand:Huatao
Model:03
MOQ:-0 -

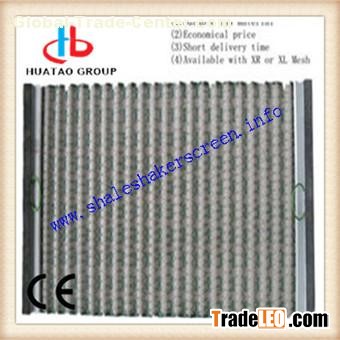

Pyramid Shale ShakerScreen
Pyramid screen are the replacement products of flat screens. The effective area is 125% to 150% of flat screens. Without changing the construction of shakers, the using of the pyramid screens can improve the quality of drilling fluid and increase the production. We can supply pyramid screens with mesh sizes ranging from 60 to 250.
Features of Pyramid screen
Ⅰ. Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better
Ⅱ.The waved cloth bonded to metal backing plate, has more surface . The effective area of a pyramid screen obtain 125%to 150% of a flat screen so that pyramid screen can load more drilling fluid flow.
| Screen Model | Range of Mesh | Dimension (Length x Width) | Brand & Model Of Shaker | Weight(Kg) |
| KSB-1(PMD) | 80-210 | 635×1253mm | BRANDT BL-50 | 17.5 |
| KSB-2(PMD) | 80-210 | 697×1050mm | DERRICR FLC 500 Series | 7.5 |
| KSB-3(PMD) | 80-210 | 697×1053mm | DERRICR FLC2000 | 5.8 |
| KSB-4(PMD) | 80-210 | 915×1150mm | BRANDT LCM-ZD | 10 |
Remarks: All the types above can be produced.
