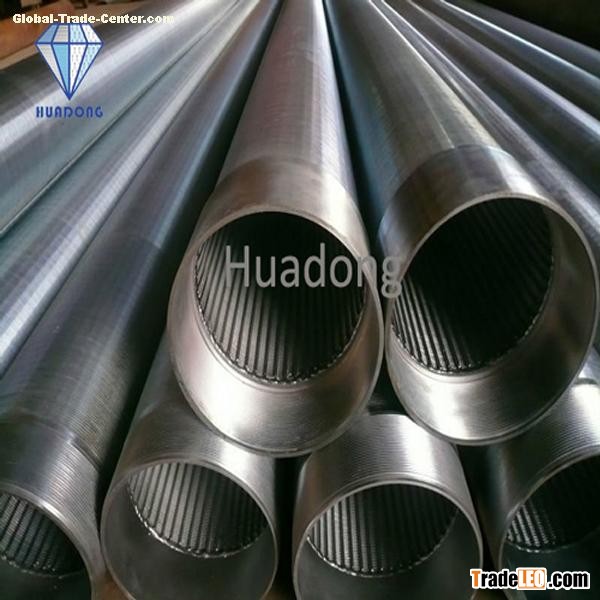

Stainless Steel Water Well Screen

Water Well Screens are manufactured with unique computerized machinery, developed in-house, and in which a continuous length of profile wire of a triangular section is fusion welded onto support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.

Benefits offered by Stainless Steel Water Well Screen:

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer);
A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow;
A uniform and efficient well development due to the continuous slot opening.

Technical Details
Slot (mm) Standards: 0.25, 0.50, 0.75, 1.00, 1.50mm

Materials of Construction:  304 & 316 grade Stainless Steel, Low Carbon Steel, Galvanized Steel…
Standard lengths : 2,90 m & 3 m or 5,80 m & 6 m
Connection Type: welded, thread. flange
