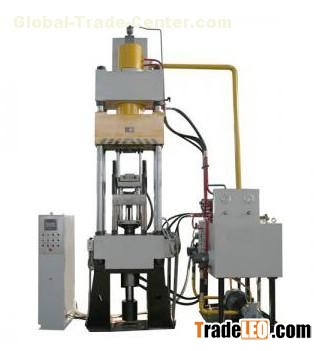

Product: YLZ79 Powder Products Hydraulic Press
Model: YLZ79-315
Brand: LIZHOU
It is used for press forming of all kinds of powder products, including powder metallurgy, machinery parts manufacturing, precision ceramic, electronic ceramics and hard alloy products.
| ITEM | UNIT | YLZ79 Powder Products Hydraulic Press | |
| YLZ79-315 | |||
| Nominal Capacity | kN | 3150 | |
| Knock-out Force | kN | 630 | |
| Max.Pressure of Main Cylinder | MPa | 25 | |
| Max.speed of slide mm | mm | 800 | |
| Stroke of Knock-out | mm | 300 | |
| Max.Open Height | mm | 1500 | |
| Speed of Slide | Descent | mm/s | 100 |
| Pressing | mm/s | 8~10 | |
| Return | mm/s | 60 | |
| Speed of Knock-out Cylinder | Knock-out | mm/s | 60 |
| Return | mm/s | 60 | |
| Dimensions of Table | L-R | mm | 1260 |
| F-B | mm | 1200 | |
| Overal Dimensions of Machine | L-R | mm | 900 |
| F-B | mm | 3235 | |
| Height Above Floor | mm | 2060 | |
| Main Motor Power | kW | 22 | |
