Brand:AJ
Model:JBQ
MOQ:1 Sets
Send Inquiry
Benefits
- Longer usable life on motor and gear box
- Require less space also easy to handle
- High efficiency, low noise, low operating temperature
- Adaptable for different application
Tenique parameters
| Model | JBQ5.5 | JBQ7.5 | JBQ11 | JBQ15 | JBQ22 |
| Motor | 5.5KW(7.5hp) | 7.5KW(10hp) | 11KW(15hp) | 15KW(20hp) | 22KW(30hp) |
| Shaft length | According to tank size and client’s requirement | ||||
| Impeller type | Canted or turbine blade | ||||
| Impeller layer | Double or single | ||||
| Impeller diameter | Ø600~Ø1200mm | ||||
| Speed | 60RPM or 73RPM | ||||
| Remark | When shaft length exceeds 1.7m, there will be stabilizer | ||||

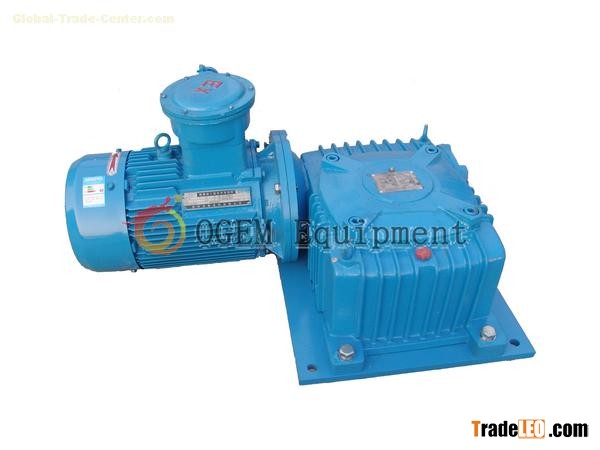

JBQ Mud agitator/mixer can be used widely in various applications. Including drilling mud mixture, chemical agitating, food or beverage, etc. It will be mounted on mud tanks or set right overmud pit. The mud agitator will help mix subject with powerful rate. To select mud agitator should know the processed subject, the tank dimension (including length, width, height). Then we'll get proper horse power, shaft length and impeller type. Just contact OGEM get your answers
