Brand:Edwards
Model:nXDS6i
MOQ:1 Sets

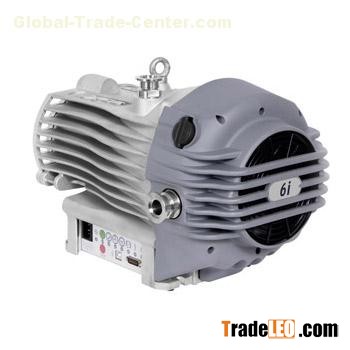

nXDS dry Scroll Pumps
nXDS6i 100 - 127 V, 200 - 240 V, 1ph 50/60 Hz
Overview
The nXDS6i is the next generation in completely oil free, dry scroll pumps and replaces the XDS5. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.
Applications
General clean pumping applications
Scanning Electron Microscopes - SEM
Beam lines and high energy physics
Backing turbo pumps
Centrifuges, ultra-high speed
Coating
Cryogenics
Degassing/curing - oil, epoxy resin
Distillation/extraction/filtration
Freeze drying
Furnaces
Gel drying
Laboratory bench top vacuum
Lasers, gas recovery and recirculation
Leak detectors, Helium
Load locks and transfer chambers
Rare gas recirculation
Rare gas recovery
Refrigeration manufacture
Research and development
Rotary, centrifugal evaporators
SEM/FIB (ion beam repair)
Solvent recovery
Surface science instruments
Technical Data
| Nominal rotational speed | 1800 rpm |
| Displacement | 6.2 m3h-1 / 3.6 ft3min-1 |
| Peak pumping speed | 6.2 m3h-1 / 3.6 ft3min-1 |
| Ultimate vacuum (total pressure) | 0.020 mbar / 0.015 Torr |
| Minimum standby rotational speed | 1200 rpm |
| Speed control resolution (percentage of full rotation speed) | 1% |
| Pumping speed at minimum rotational speed | 4.1 |
| Maximum continuous inlet pressure | 200 mbar |
| Motor power 1-ph | 260 W |
| Power connector 1-ph | IEC EN60320 C13 |
| Recommended fuse | 10A, 250Vac rms |
| Weight | 26.2 kg / 58 lb |
| Inlet flange | NW25 |
| Exhaust flange | NW25 |
| Noise level | 52 dB(A) |
| Vibration at inlet flange | < 4.5 mms-1 (rms) |
| Leak tightness (static) | < 1x10-6 mbar ls-1 |
| Operating temperature range | 10 to 40 °C / 41 to 104 °F |
