Brand:SIMUWU
Model:RVSL-459
MOQ:1 Sets

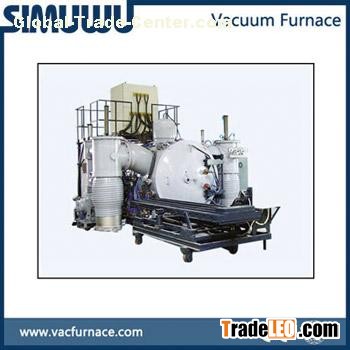

Low temperature vacuum soldering furnace
It is widely applied for the Al products soldering, for example Aluminium plate-fin heat exchanger, auto radiator, auto air conditioning evaporator and condenser, radar antenna and waveguide tube.The welding temperature is under 700 degrees. It features is no oxidation, no weld flux, no pollution, no air hole and saving energy. It is the ideal equipment to replace salt bath brazing.
Specifications:
| Main technical data of low temperature vacuum soldering furnace | |||||
| Model | Effective working dimension (mm) | Max temperature (℃) | Ultimate pressure (pa) | Pressure rising rate (pa/h) | Temperature uniformity (℃) |
| RVSL-459 | 450×450×900 | 850 | 8.0×10-4 | 0.5 | ±3 |
| RVSL-669 | 600×600×900 | 850 | 8.0×10-4 | 0.5 | ±3 |
| RVSL-6612 | 600×600×1100 | 850 | 8.0×10-4 | 0.5 | ±3 |
| RVSL-8716 | 800×700×1600 | 850 | 8.0×10-4 | 0.5 | ±3 |
| RVSL-7112 | 700×1000×1200 | 850 | 8.0×10-4 | 0.5 | ±3 |
| RVSL-7114 | 700×1000×1400 | 850 | 8.0×10-4 | 0.5 | ±3 |
| RVSL-1325 | 1300×1100×2500 | 850 | 8.0×10-4 | 0.5 | ±3 |
