Brand:SIMUWU
Model:RVSG-75G
MOQ:1 Sets
Send Inquiry

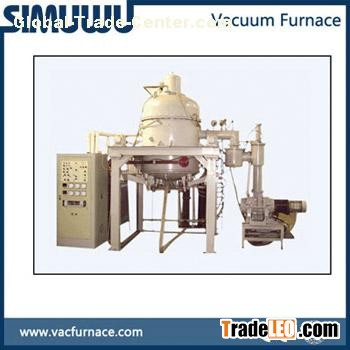

1600C VACUUM SINTERING FURNACE
It is applied for vacuum sintering of cemented carbide, ceramic material, magnet material and rare refractory metal and alloy(Tungsten, Molybdenum and Tungsten-copper alloy)in high temperature under vacuum condition or filling inert gas atmosphere. It features high pumping capacity, high vacuum, controllable uniform temperature and no leakage. We can design and produce it according to your requirements.
Tel: 86-21-50878190
E-mail: simuwu@vacfurnace.com
Skype: Kevin.law012
Web site: www.vacfurnace.com
Specifications:
| Main technical data of 1600C degree vacuum sintering furnace | |||||
| Model | Effective working Dimension (mm) | Max temperature (℃) | Ultimate pressure (pa) | Pressure rising rate(pa/h) | Temperature Uniformity(℃) |
| RVSG-75G | 300×250×500 | 1600 | 2×10-3 | 0.5 | ±5 |
| RVSG-100G | 400×350×800 | 1600 | 2×10-3 | 0.5 | ±5 |
| RVSG-150G | 450×400×900 | 1600 | 2×10-3 | 0.5 | ±5 |
| RVSG-200G | 450×400×1100 | 1600 | 2×10-3 | 0.5 | ±5 |
| RVSG-300G | 500×500×1000 | 1600 | 2×10-3 | 0.5 | ±5 |
| RVSG-500G | 600×600×1000 | 1600 | 2×10-3 | 0.5 | ±5 |
| RVSG-1TG | 600×550×1400 | 1600 | 2×10-3 | 0.5 | ±5 |
| Vertical RVSG-50×70 | Φ500×700 | 1600 | 2×10-3 | 0.5 | ±5 |
| Vertical RVSG-11×11 | Φ1100×1100 | 1600 | 2×10-3 | 0.5 | ±5 |
| Vertical RVSG-12×12 | Φ1200×1200 | 1600 | 2×10-3 | 0.5 | ±5 |
| Vertical RVSG-15×15 | Φ1500×1500 | 1600 | 2×10-3 | 0.5 | ±5 |
