Brand:Suke
Model:SK1325
MOQ:1 Sets

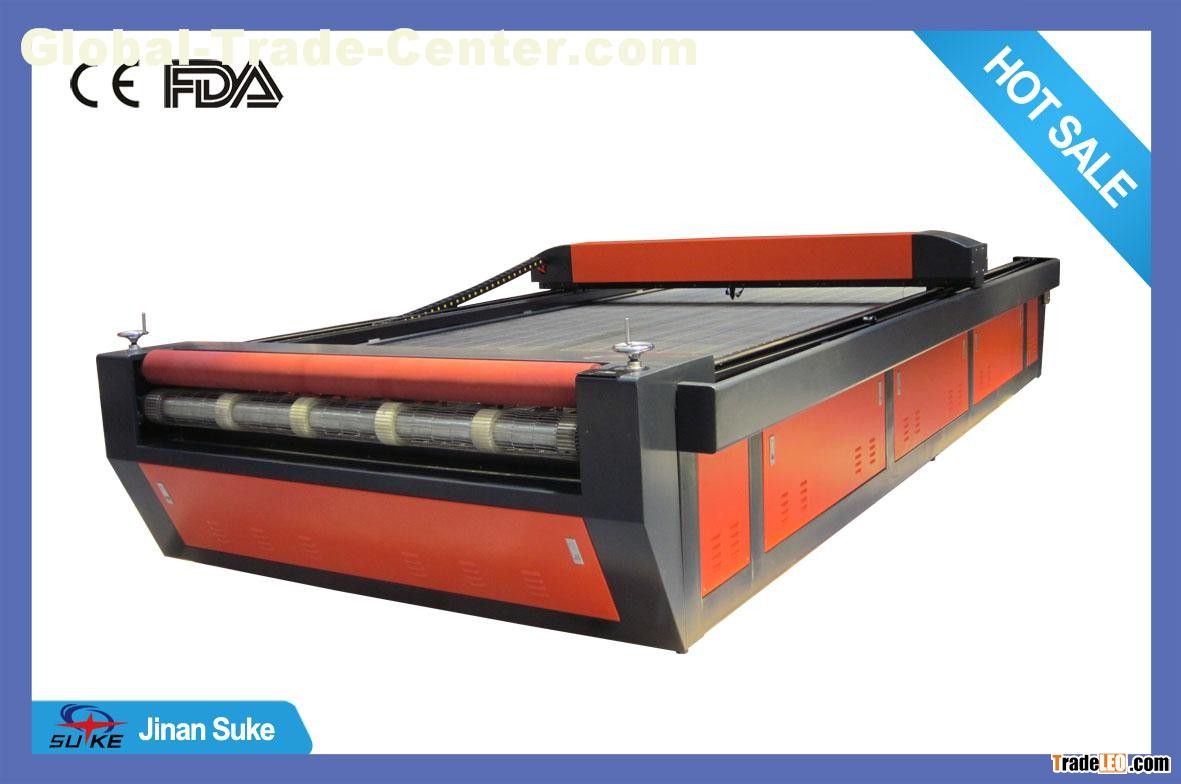

Auto-Feed Fabric Cloth Laser Engraving Cutting Machine
Applicable materials:
wood, bamboo,marbel, acrylic, plastic, cloth, rubber, glass, paper,leather,ceramics and other non-metal materials.
Features:
1. Front and rear hole to pass long materials
2. Modern design and beautiful appearance
3. Use imported Taiwan Hiwin linear guide, more durable and high precision
4. Water protection switch ,safety switch and limit switch
5. Adopt DSP control system, and USB offline operation, LCD screen
| Model | SK1325 |
| Working Area | 1300*2500mm |
| Laser tube power | 40w/60w/80w/100w/130w/150w (can be optional) |
| Laser tube type | Sealed CO2 laser tube, water-cooling, 10.6um |
| Lift of laser tube | 1500 hours or 10000 hours optional |
| Max. engraving speed | 0-60000mm/min |
| Cutting speed | 0-30000mm/min |
| Cutting thickness | 1-20mm acrylic (determined by the material) |
| Resolution ration | <0.01mm |
| Location precision | <0.01mm |
| Min. shaping character | Chinese 2*2mm, English 1*1mm |
| Support graphic format | DST, PLT, BMP, HPGL, DXP, and AI |
| Software supported | CorelDraw, Auto CAD, Photoshop |
| Power supply | AC110-220v, 50-60HZ |
| Operating temperature | 0-40 centigrade degrees |
| Operating Humidity | 5%-95% free of condensed water |
| Interface | USB |
| Assistant Equipment | Exhaust fans, water pump, air pump |
| Driving system | stepper |
| Control system | DSP |
| Consuming power | <1000w |
