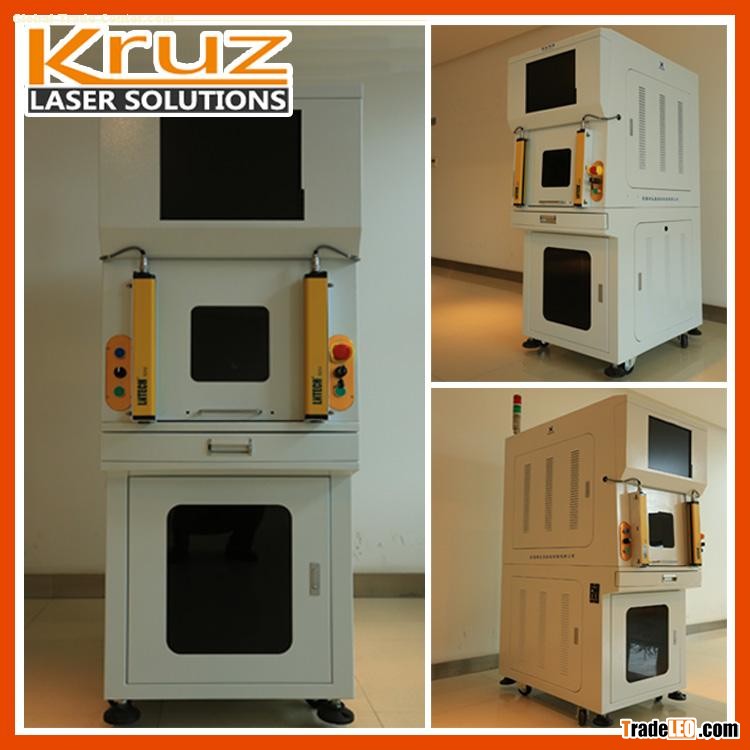

UV LASER MARKING MACHINE

Type KU1Table,KU2 Universal,KU3 Rotary table

Laser type/Wavelength                         355nm

Laser power                                 1.5W 3W 5W 10W

Beam quality                                 M2 <1.5

Pulse width                                 4-200ns

Frequency                                 20kHz ~ 100kHz

Pulse repetition frequency                     100kHz

Power stability                                >4h +/-3% rms

Peak power                                 125μj/10KW

Marking size                                 100mm x 100mm

                                            180mm x 180mm or Order

Marking depth                                 Adjustable

Marking speed                             15000mm/s

Marking width Min                             0.01mm(10μm)

Marking character Min                         0.1mm

Power total                                 ≤700W

Working Temp.                             10 - 30℃

Power supply                                 AC 220V/50Hz

Outsize                                     570*840*1240mm(Difference by types)

Advantages:

1.Fully air cooling system;

2.Stable performance, low maintenance in 100,000hours;

3.All kinds of metal materials and some non-metallic material marking, can be used for the depth of the moment, the applicability is very widely;

4.Control by computer, can freely change the marking and parameters;

5.Small laser spot, fine, unique and never wear marking effect.

Applications:

1.Areas with depth, smoothness and fine requirements;

2.Mobile phone keypad, plastic translucent keypad;

3.Electronic components, integrated circuits (IC), PCB;

4.Electrical appliances, communication products, signs;

5.Sanitary ware, hardware products;

6.Tool accessories, precision instruments panels;

7.PVC pipe, medical equipment.
