Brand:BOHMAN
Model:BM4040
MOQ:1 Sets

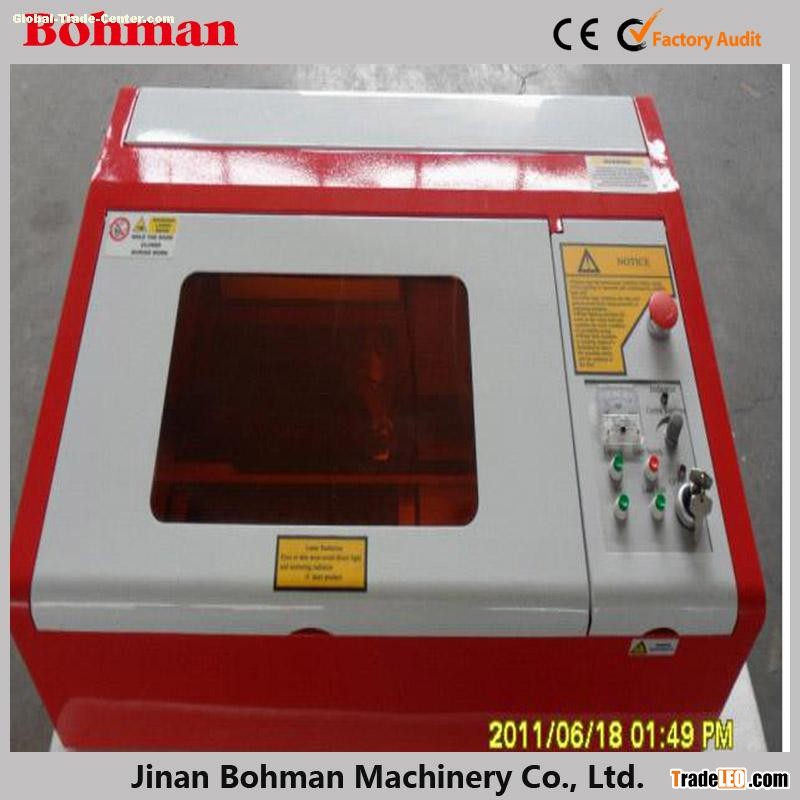

BM4040 Desktop Laser Engraving Cutting Machine
Production Description
Production Name: Desktop Engraving Cutting Machine
♦ DSP offline control system, can move smoothly
Features: ♦ With USB interface, easy to connect to PC
♦ Double optic axis of Y direction , guarantee the working precision.
Technical Parameters:
| Model | BM4040 | ||
| Working area | 400*400mm | ||
| Laser Power | 40W | ||
| Laser Type | CO2 sealed glass Laser Tube | ||
| Engraving speed | Lasercut software: 0-1000mm/s Newlydraw software: 0-500mm/s | ||
| Worktable | Aluminum section worktable with T-slot | ||
| Resetting positioning accuracy | ＜0.01mm | ||
| Cutting depth(mm) | Acryl 0-10 (differs on different materials) | ||
| Minimum Shaping Character | 1×1mm | ||
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ | ||
| Software supported | Artcut, CorelDraw, Photoshop, AutoCAD | ||
| Graphic format supported | PLT、DXF、BMP、JPG、GIF、PGN、TIF | ||
| Water Cooling(Yes / No) | Yes | ||
| Maximum Height of Materials to Engrave (mm) | 25mm | ||
| Laser Tube (life hours) | 1200-1500 hours | ||
| Assistant Equipment | Water pump | Water follow sensor | Exhaust fan |
| Optional Parts | Red dot pointer | Water chiller | Honeycomb cutting table |
| Consumables | Lens and mirror, laser tube | ||
| Certificate | CE | ||
