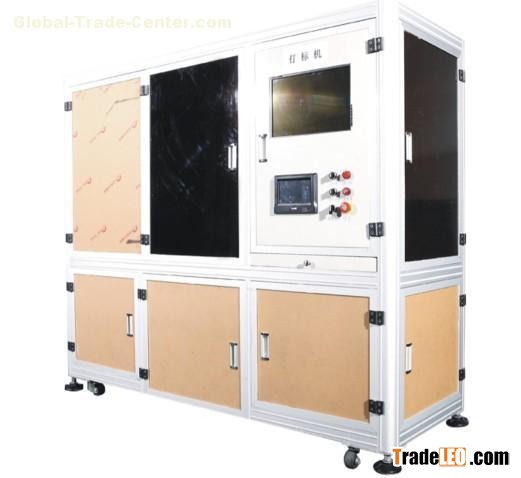

Automatic laser cutting and marking machine

Automatic mobile phone film laser cutting and marking machine are applicable for high

speed automatic cutting and marking by mobile phone keystoke film switch.
It has the following advantages:

1. High precision: This mobile phone film cutting machine adopts CO2 laser, expanding

and binding glass with high multiples. It has much smaller laser focus point, more

accurate cutting, higher precision, and faster speed.
2. Automatic: 24 hours continuous work without worker to watch. The operator only needs

to put the rolled materials into the tray which delivers materials, then the machine

will deliver, cut, and collects materials automatically. When the materials are used

up, the machine will stop by itself and gives an alarm. Meanwhile, this machine owns

flexible manual operation function and it can control all the operations by hand, which

is convenient for the first mounting of materials and adjusting work.
3. Stable: This mobile phone film cutting machine is collocated cooling system for

laser marking scanning head, which can ensure the constant temperature of scanning

vibrant glass during work time and avoid the phenomenon that marking place is not

accurate because of unstable temperature of vibrant glass of normal marking machine. It

can ensure you the precision stability during cutting process.
4. Delivering materials system adopts imported Japan servo system with faster speed and

higher precision of delivering materials, which improves the unit work efficiency of

the machine.
5. Double route way wind vent system. Make sure the peculiar smell gas during cutting

operation venting outside well. Drawer style scraps recycle device can get rid of the

scraps easily.

Model GL-30W-AM
Laser Type USA imported CO2 laser water-cooling wind-cooling
Laser power 30W 60W (Optional)
Laser frequency ≤50HZ
Laser wave length 1064nm
Marking precision ±0.01mm
Marking area 100mm×100mm  175mm×175mm  (Optional)
Min-laser width 0.18mm
Smallest character engraving 0.5mm×0.5mm
Materials delivery speed ≤300mm/s
Max Marking Moving Speed 0-7000mm
Marking and engraving depth ≤3mm
Max scanning speed 10000mm/s
Electricity demand 220V ±10% 15A
Supported graphics formats DST PLT BMP DXF
Compatible Software CorelDRAW, Photoshop, AutoCAD
Color Marking about 256 layers color cutting
Using environment Clean without dust No vibration source
