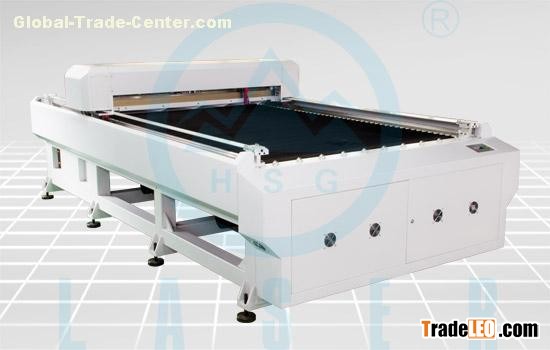

1.Product name：Light Guide Plate LGP Laser Engraving/Cutting Machine for LED Light

2.Work size(mm):1500×3000

3.power(mm):135W

4.Volume (m3):13

5.weight(kg):1000kg

6.dimension(mm):3470*1892*1178

7.wooden case dimension(mm):3570*1970*1178

8.Transmission Model:Steel belt is fixed, the gear transmission

9.Max speed without cutting:48m/min

10.Reprecision:±0.01mm

11.power supply:AC220V±10% 50HZ

12.precision accuracy:0.02mm

13.Total power of machine:≤1800W

14.operating temperature:0°C-40°C

15.Operating Humidity:5-95%

16.format supported:DXF、AI、PLT、CDR、BMP、PLT、DST etc.

17.Applied Materials:Apply to cut acrylic, LED light panels, MDF, fiber board of composite panels, advertisement decoration materials, electrical panel, such as cutting, designed for high precision cutting of the user.
