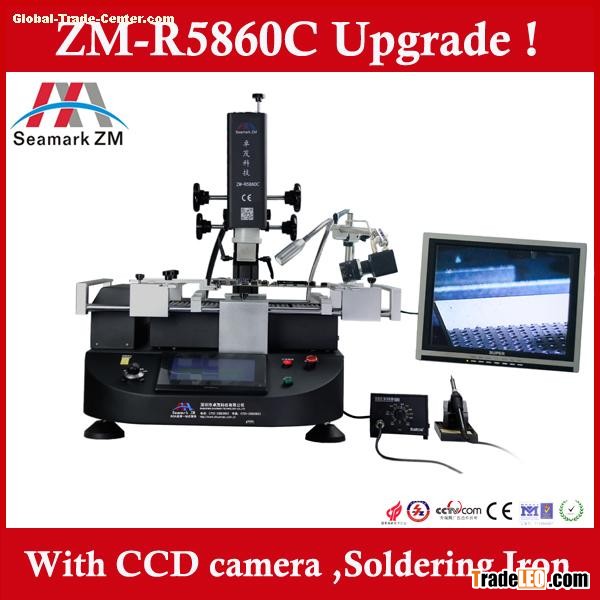

Brand:Zhuomao
Model:ZM-R5860C
MOQ:1 Sets
manual bga rework station,best machine reballing for laptop, bga rework station
Specifications and technical parameters:
| 1 | Total Power | 4800W |
| 2 | Top heater | 800W |
| 3 | Bottom heater | 2nd heater 1200W, 3rd IR heater 2700W |
| 4 | Power supply | AC220V±10％ 50/60Hz |
| 5 | dimension | 635*600*560mm |
| 6 | Positioning | V-groove, PCB support , external universal fixture |
| 7 | Temp. control | (K Sensor) closed loop, independent heating, precision within 3°C; |
| 8 | PCB size | Max 410*370mm Min 20*20 mm |
| 9 | Electrical selection | temperature control module＋Touch screen + PLC |
| 10 | Weight | 45kg |
| 11 | Camera | DC12V PAL Resolution: 768(H)*494(V) |
Features:
1. Touch-screen + PLC control to show 3 temperature graphs, temperature precision within 2 degree.
2. Seven temperature sections: preheating, insulation, heating, welding 1, welding 2, cooling and refrigeration.
3. Save 1 to 50 groups parameters.
4. Top / bottom nozzle are hot air heating. The bottom plates are infrared to preheat the PCB, insure it not deformed.
5. K-Sensor with closed-loop to detect up/down temperature.
6. alarming when finish welding. Machine with over-heating protection.
7. Cross-flow fan to cool PCB after welding.
8. V-groove& fixtures for regular and irregular PCB boards positioning.
9. for large thermal capacity of PCB/CSP and high-temperature lead-free requirement.
10. The Camera to observe the solder balls reflow from the side when welding, video shown on split 15” LCD.
