Brand:HWM
Model:MMA 200
MOQ:50 Pieces

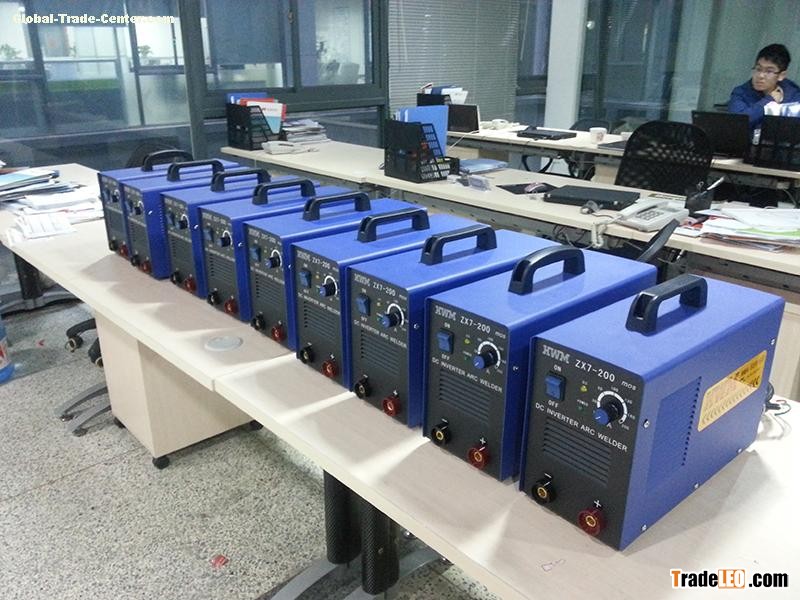

The HWM MMA is a single-phase DC inverter arc welding power source with Constant Current (CC) output characteristics providing the best combination of power, portability and convenience. Designed for STICK and Torch Start TIG welding applications.
A good welding performance is available when welding stainless, mild steels and easy start.
Machine Specifications:
| Items | MMA-200 |
| Input Voltage | 220V/240V 1Ph 50/60HZ |
| Input Current | 26.5A |
| Insulation Class | H |
| Open Circuit Voltage | 56V/61V |
| Duty Cycle@40C | 60%@120A 100%@93A |
| Welding Current | 20A-120A |
| Load Voltage | 24.8V |
| Protection Class | IP23 |
| Dimensions（L*W*H） | 350*115*210mm |
| Weight | 3.5kg |
Accessories:
·Joint connector plug:DKM25*2
Optional Accessory：
·Comp.electrode holder:1.5m,16mm2
·Comp.earth clamp:1.5m,16mm2
·Electrode holder:200A
·Earth clamp:300A
·Cable:16mm2
Packing:1>.Cardboard box:arc machine+Joint connector plug+users manual 1set/cardboard box , 2boxes/carton ,size:375x150x240mm.
2>.Plastic box:arc machine+welding holder+welding cable+earth clamp+wire brush+welding mask+user manual 1set/plastic box,2boxes/carton,size:400x190x270mm.
