Brand:Domain

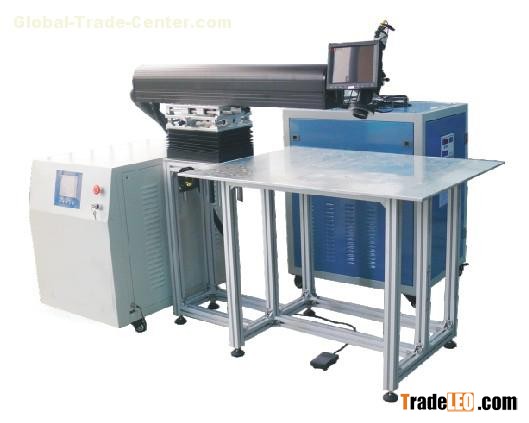

Model:CY-W400HZ
MOQ:1 Sets
Application:
Applied for the welding of various metal letters, LED illuminated letters,customized metal signage, and exterior billboards.
Features:
1. red light fast positioning, CCD display, microscope optional
2. Adjustable working table allows welding from small size to bigsize of work piece
3. Fast working speed; professional jig ensures the focus fixedand makes welding easier without using CCD or microscope
4. Slight distortion and affect by heating.
5. Capable of partial heating process.
6. Able to deal with complex, profiled, or tiny letters.
7. Low noise and no pollution.
8. Ultrafine positioning rod makes the welding of tiny corner easierwithout changing spot position
9. New metal processing technology brings higher quality of endproducts.
Technical Parameters:
| Model No. | CY-W400HZ |
| Machinery Part | Optical system moves 550mm distance and 90° rotate |
| Bench Stroke | Working area 750*1000 |
| Bearing of bench | ≤200KG |
| Power supply | 380V±10%/50/60Hz (water cooling 220V) |
| Laser type | Pulsed Nd:YAG (xenon lamp) |
| Adjustment range of light spot | 0.1～0.3mm |
| Size of light spot | 0.2～3.0mm |
| Laser wavelength | 1064nm |
| Pulse width | ≤15ms |
| Max laser power | 400W |
| Pulse frequency | ≤50Hz |
| Laser output | 200mm |
| Laser cooling | Water cooling |
| Observation system | CCD( microscope for option) |
