Brand:OK
Model:T-310AD
MOQ:-0 -
Send Inquiry
| 變頻式交直流脈波氬焊機 | ||

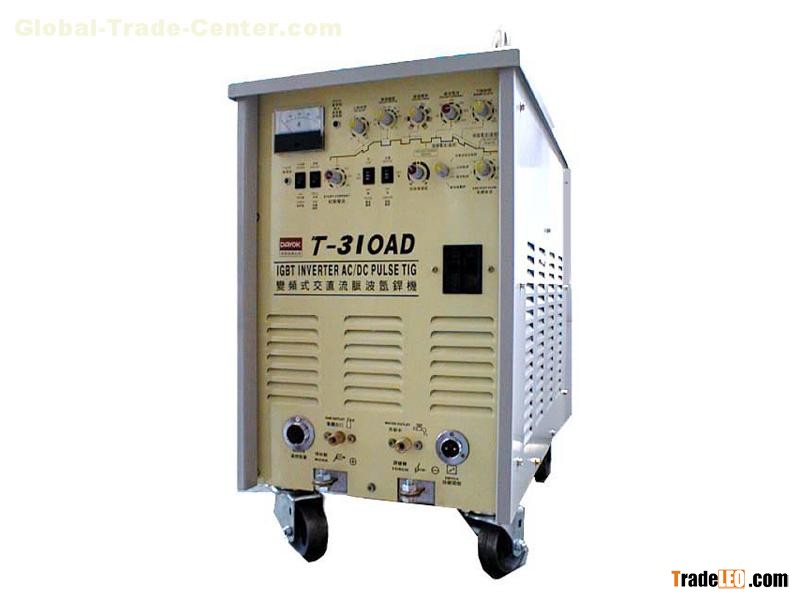

| I.G.B.T. Inverter AC/DC Pulse TIG | ||
| T-310AD | ||
| 1. 變頻設計省電40%。 2. 起弧容易，瞬間點火。 3. 可適用於電壓波動較大之地區或國家。 4. 採用I.G.B.T高頻設計，無噪音，低故障率。 5. 面板旋紐控制部份採圖樣化，易解且操作容易。 6. 使用單相/三相入力，不會造成電源相位不平衡。 | ||
| 1. Advanced I.G.B.T. high frequency PWM design: D.C. output current stable, noiselessness, input voltage allowed 180V~250V variance, low failure rate, high duty cycle, easy maintenance, simple machine control with panel diagram indication. 2. Fine ARC start, great and stable ARC, best for welding aluminum and copper, including D.C.-STICK function. 3. Three phase / Single phase input power can apply: no phase-change imbalance. Can operate in high-voltage-variation areas or countries. 4. Inverter-controlled design: light weight and small dimension. | ||
| 型號 | Model | T-310AD |
| 輸入電源 | Input Power | 1Ø / 3Ø , 220V 50/60Hz |
| 定格入力 | Rated Input | 12KVA |
| 最高無負荷電壓 | Maximum No-Load Voltage | 60V |
| 電流範圍 | Output Current Range | 5~300A |
| 起弧時間 | Up Slope Time | 0.1~5 sec. |
| 收弧時間 | Down Slope Time | 0.2~10 sec. |
| 脈波頻率 | Pulse Frequency | Low 0.5~25 Hz |
| Mid 10~500 Hz | ||
| 使用率 | Duty Cycle | 60% |
| 氣體預流 | Gas Pre-Flow Time | 0.3 sec. |
| 氣體後流 | Gas Post-Flow Time | 2~23 sec. |
| 收弧電弧選擇 | Crater Control | On / Off / Repeat |
| 被覆焊電流 | Stick Welding | 5~240A |
| 重量 (kg) | Weight（kg） | 55 |
| 體積 (mm) | Dimensions（mm） | 630 x 365 x 635 |
| ■以上數據與實品誤差值約正負5%. | ■The above technical data are measured with about 5% allowance. |
