Brand:OK
Model:IV300D
MOQ:-0 -
Send Inquiry
| 變頻式直流電焊機 | ||

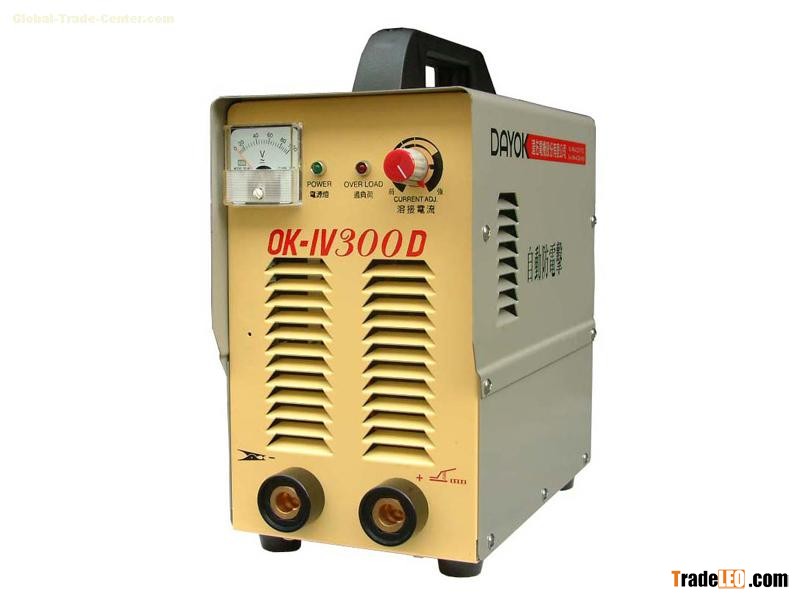

| D.C. Arc Welder (Inverter) | ||
| IV-300D | ||
| □起弧容易，非厚工件焊接時，可高負荷持續使用。 □4mm焊條在中厚板工件使用200A電流時，可長時間焊接。 □具防電擊功能（中華民國法令：直流焊機不需裝防電擊裝置）。 □體積小，重量輕，適合外出工作。體積與重量只有傳統控制的1/5。 □高頻元件，省電50﹪，電流穩定，無噪音，電壓190V~235V變動範圍均可穩定工作。 | ||
| Features: 1. Built-in Anti-Shock Device (Voltage Reducing Device). 2. Easy to start the Arc. High Duty Cycle. 3. Small Dimension, Light Weight (1/5 of the traditional type), and suitable for outdoor usage. 4. Can be operated on both One & Three phases. 5. I.G.B.T: High Frequency component can Save the Electricity by 50%, Stable-Current & Noiseless when operated. | ||
| 型號 | Model | IV300D |
| 電源 | Input Power | 1Ø , 220V 50/60Hz |
| 輸出電流 | Output Current | 10~300A |
| 使用率(10分鐘為一週期) | Duty Cycle(10 Mins) | 60% |
| 空載電壓 | No-Load Voltage | 72VDC |
| 負載電壓 | Full-Load Voltage | 32VDC |
| 防電擊待機電壓 | Voltage Reducing Device Standby Voltage | 5VDC |
| 重量 | Weight (kg) | 13 |
| 體積 長 x 寬 x 高 (mm) | Dimensions LxWxH (mm) | 300x175x338 |
| ■以上數據與實品誤差值約正負5%. | ■The above technical data are measured with about 5% allowance. |
