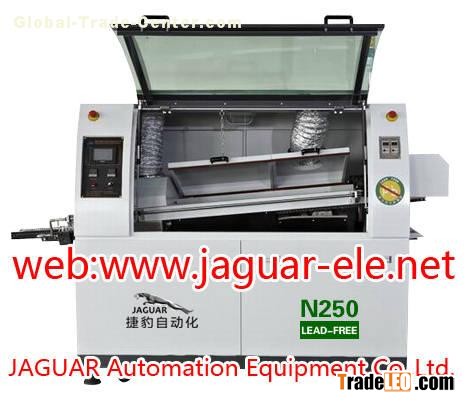

Product Description

Features:
1.Automatic conveying power system, with non-level frequency conversing speed adjustment and auto synchronous board feeding functions.
2.Flux spray system using scanning spray nozzle,Japanese nozzles and rodless pneumatic cylinders and PLC control ,accurate and reliable
3.Remote infrared ceramic heating pipes are adopted in the preheating system which ensures good heat preservation effect ,high heating up speed and even temperature
4.Special alloy transportation chain claws , non-stick tin,reinforced, and ensure the quality of welding PCB board
5.Tin stove adopts imported high frequency conversion motor independent control,stable performance
6.Lead-free solder furnace with independent design ,environment protection and safety , easy to clean
7.Tin heating furnace uses high-speed PID and 2-stept independent outer heating control ,warm-up quickly and eliminates the flaws of stove tin explodes
8.With time controller ,can preset switch functions ,tin stove machine heating picks up in 90minutes
9.Reasonable design of environment protection,and automatic washing claw ,ensure the claws clean.
10.The design is reasonable and safe with sensitive fault alarm system ,to ensure the stable performance the safety of operators

ITEMS         SPECIFICATION
Control    method         Press  key+PLC
Convey  or  motor         1P    AC220V, 60W
Convey  or  speed         0-1800mm/min
PCB    size         30-300mm(w)
Flux  capacity         6L
Pre-heating  zone         600mm
Solder  pot  temperature         Room  temperature---300C
Solder  pot  capacity         180KG
Wave  motor         3P    AC220V, 0.18KW
Finger  cleaning  pump         1P    AC220V  6W
Convey  or  direction         L- R  (R- L  optional)
Convey  or    angle         3_6
Flux    pressure         3_5BAR
Power  supply         AC380V  50HZ
Normal  working  power/         3.5KW/18KW
Outside  dimension         2570(L)*1200(W)*1500(H)
Dimension         1800(L)*1200(W)*1500(H)
Net  weight         600KG
