[HIGH PRODUCTIVITY]
Optimizing PCB transportation paths for productivity improvement DECAN F2
Modular Conveyors

An optimal conveyor model configuration is possible according to production line composition (shuttle dual) applied with a modular conveyor that is replaceable on site.

PCB supply time is shortened as a result of high-speed shuttle conveyor operation.
Minimized head path for improved equipment speed
Twin Servo Control

Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head

Minimized head movement path through recognizing parts during transportation following parts installation

10-spindle head with individually operating Z axes

[HIGH RELIABILITY]
Placement Accuracy: +/-40 (0402mm  01005inch)

Applied with a high-precision linear scale and rigid mechanism

Provides precision calibration algorithms and diverse automatic calibration functions

[FLEXIBLE LINE SOLUTION]
Provides optimal line solutions through versatility and productivity improvement

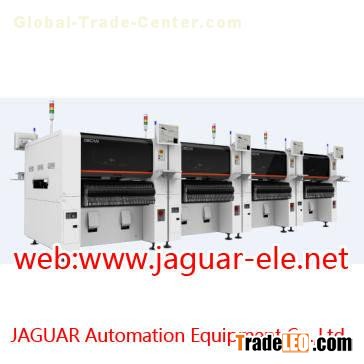

DECAN Line

Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site

Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
     - Responsive to a maximum 740 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)

Responsive to a maximum 42mm IC when the stage vision option is applied
