Technical parameter:

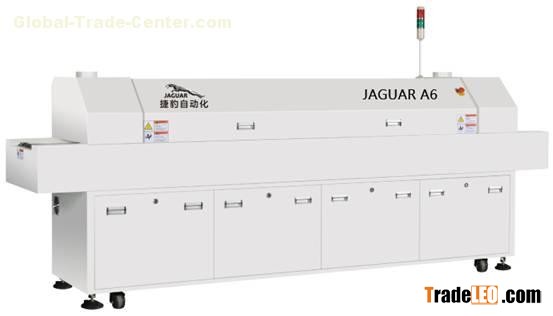

Model        JAGUAR A6
Heating number        UP 6/BOT6
Heating length        2400MM
Heating method        Hot air cycle
Cooling zone        1
PCB max width        300MM (350mm,400mm option)
Transport direction        L-R(or R-L)
Transport belt height        880+/-20mm
Transport method        NET+Chain transmission
Transport speed        0-1500mm/min
Power        5 line 3 phase 380V 50/60Hz
Start power        16kw
Run power        5KW
warm up time        about 15min
Temperature control range        Room temperature~400 C
Temperature control method        Temperature instrument closed-loop control
Temperature precision        +/-1 C
Temperature direction on PCB        +/-2 C
Abnormal alarm        Temperature abnormal
Dimension        3500*650*1220
Weight        350KG
