Brand:CDH
Model:CDH-25AB
MOQ:1 Sets

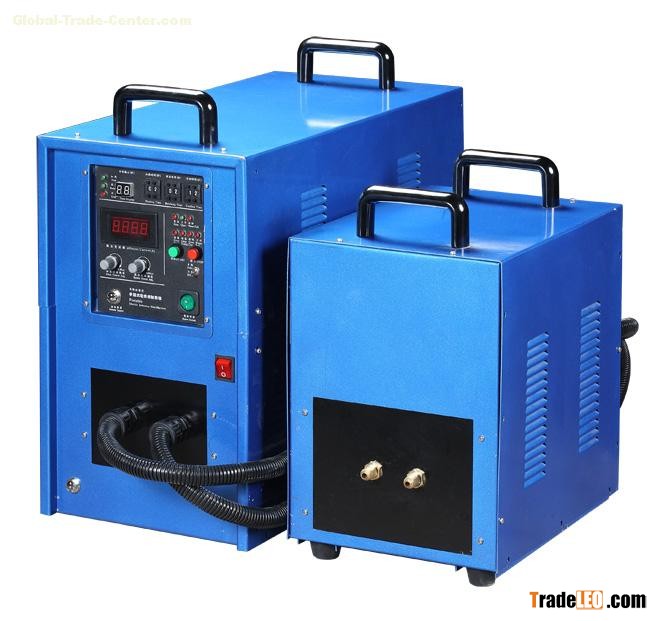

CDH-25AB High Frequency Induction Heating Machine
Main Features:
1、 IGBT module and Inverting technologies of First generation been used;
2、 Simple structure and light weight and easy for maintenance;
3、 Simple to operate, A few minutes is enough to learn it;
4、 Simple to install, Installation can be done by unprofessional
person very easily;
5、 Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset
respectively, to realize a simple heating curve, this model is
suggested to use for batch production to improve the
repeatability;
6、 The separated models are designed to fit the dirty surrounding
of some cases
Specifications:
| Type | CDH-25AB |
| Work power | 3×380V/50-60HZ |
| The range of operating voltage | 340V-430V AC |
| Output power | 25 KW |
| Fluctuating frequency | 30-80KHZ |
| Output current | 200-1200A |
| Timing (Heat time、 Retain time 、 Cool time) | 1-99S |
| The flow rate of cooling water | 0.2Mpa，6L/Min |
| Water temperature protection point | 40℃ |
| Weight | Mainparts:21Kg extension:16kg |
| Size | Main parts：560*220*505mm Extension：315*200*350mm |
