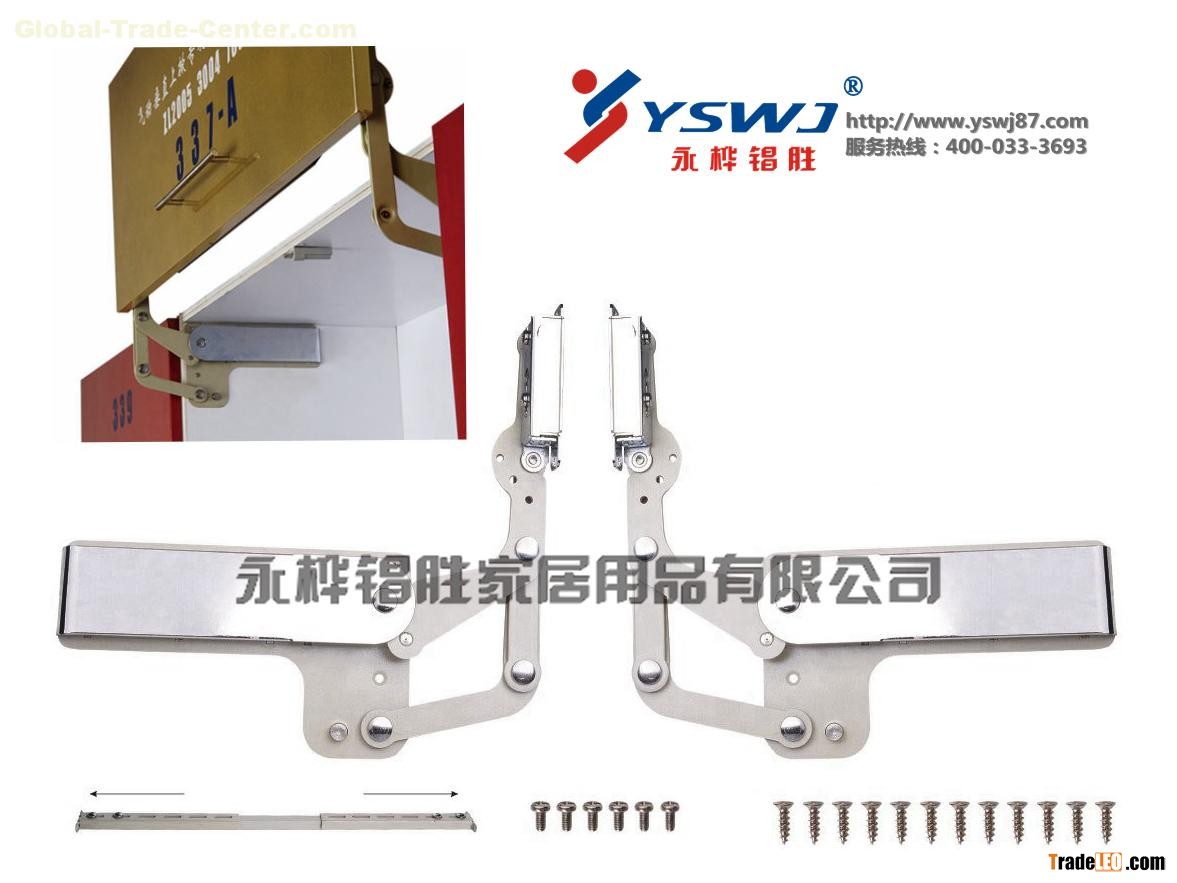

Product Description:

A: Material: air spring, cold-rolled steel Q235 etc

B: Finish: powder-coated, plated（brass + nickel + sealing）

Features:

A: Easy to operate and save the space, opening and closing silently.

B: A wide range of options for users.

C: Application for a variety of different specifications , material and weight upward    opening door, easy to install.

D: Easy to install, 3-D adjustment is achieved for the door.

E: Suitable for heavy-duty door, different options according to the door weight.

F: Comparing with YS337-B kitchen door lift mechanism, with different polish and connecting bar.

Advantages:

A、The door lift up by itself slowly after pulling for 10cm.

B、Closing silently without any noise and shock.

Product Parameter:

A: Application: For microwave oven used kitchen cabinet and office file cabinet

B: Installation: pls refer to the chart below.

C: the length of connecting bar: 535mm, whose size is adjustable.

D: Cycles: 50,000times

E: Maximum front projection: 173mm

Others (packing and service)

A: Package: 1 set/inner box, 6 inner boxes/carton

B: N.W. : 17.6/19kgs

C: MEAS: 75*44*12.2cm

D: Delivery Date: Normally in one month.

E: MOQ: 120sets

F: Payment term: T/T
