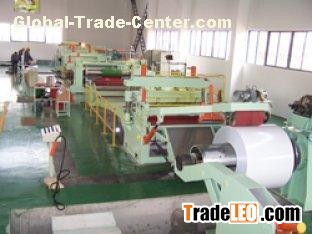

0.2-1mm Slitting Line, suitable for hot/cold rolled coil, galvanized steel, carbon steel.


Coil basic data
1. Material: Hot/cold rolled coil, etc
2. Thickness: 0.2-1mm
3. Width: 400-2000mm
4. Inner diameter: 508mm
5. Max outer diameter: 1800mm
6. Capacity: 15T(depends on client's demand)


Main data
1. Standard power source: AC380V/50Hz
2. Work speed: 0-100m/min
3. Main power: about 80KW
4. Machine outline (L*W): about 15MX8M(including Safety Area)
5. Installation height: about 2M
6. Total weight: about 35tons
7. Operators for the machine: 2-3 workers
8. Paint of the machine: Main body in green, moveable units and danger area in yellow (or according to Buyer's demands)
9. Running direction (decoiling direction): Depends on Buyer's requiremen


Work Flow
Feeding trolley---hydraulic single-load un-coiler--- feeding unit--- plate head cutter--- rectification unit--- slitting cutter---scrap re-coiler---loop--- pre-distribution & tensioning machine--- rewinding machine--- unloading trolley--- hydraulic & electric control
