Brand:DHH
Model:DB-75A
MOQ:1 Pieces

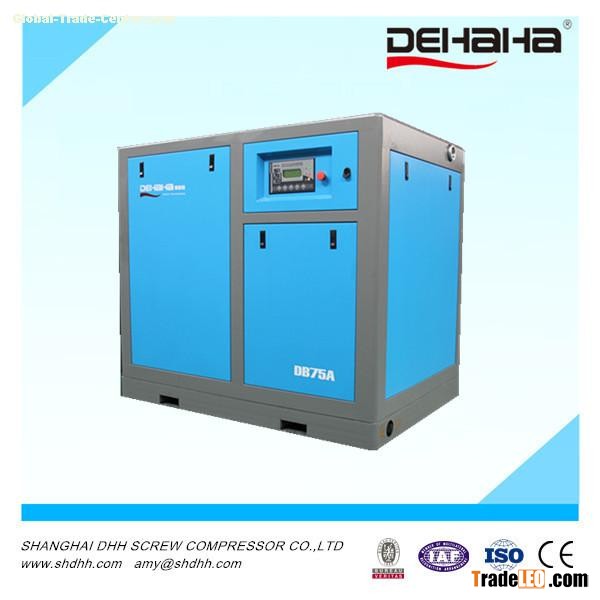

DHH Belt Driven Screw Air Compressor
Reliable imported durable Germany v-shaped belt transmission. Adopting Germany-made belt transmission, transmission efficiency can reach 99%. Unique BCA tension auto adjusting device ensure constant transmission efficiency and excellent drive system reliability. BCA automatic tension adjustment device can ensure the air compressor is the best continuous transmission efficiency in setting under pressure and reduce maintenance costs.
| DHH | Air Flow Capacity(m³/min) | Power | Noise | Outlet Diameter | Dimension | Weight | ||||
| Model | 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | KW | HP | dB | INCH | WxDxH mm | Kg |
| DB-7.5A | 0.91 | 0.84 | 0.75 | 0.63 | 5.5 | 7.5 | 65 | G3/4'' | 780x680x800 | 300 |
| DB-10A | 1.3 | 1.2 | 1.0 | 0.84 | 7.5 | 10 | 65 | G3/4'' | 780x680x800 | 320 |
| DB-15A | 1.7 | 1.6 | 1.4 | 1.2 | 11 | 15 | 65 | G3/4'' | 1100x800x980 | 400 |
| DB-20A | 2.4 | 2.3 | 2.0 | 1.6 | 15 | 20 | 68 | G3/4'' | 1100x800x980 | 430 |
| DB-25A | 3.0 | 2.9 | 2.7 | 2.3 | 18.5 | 25 | 68 | G1'' | 1250x870x1180 | 590 |
| DB-30A | 3.7 | 3.6 | 3.2 | 2.8 | 22 | 30 | 68 | G1'' | 1250x870x1180 | 650 |
| DB-40A | 5.2 | 5.0 | 4.5 | 3.8 | 30 | 40 | 69 | G1'' | 1250x870x1180 | 750 |
| DB-50A | 6.5 | 6.2 | 5.6 | 4.9 | 37 | 50 | 69 | G1 1/2'' | 1540x950x1290 | 880 |
| DB-60A | 8.0 | 7.3 | 7.0 | 5.9 | 45 | 60 | 70 | G1 1/2'' | 1540x950x1290 | 1000 |
| DB-75A/W | 10.1 | 9.5 | 8.7 | 7.8 | 55 | 75 | 70 | G2'' | 1600x1150x1420 | 1500 |
Notes:
1. A represents air-cooling type,W represents water-cooling type;
2. Working Environment temperature: -5ºC~45ºC;
3. Discharge temperature is less than ambient temperature +10ºC~15ºC;
4. Drive Mode: belt driven;
5. Startup Mode: direct start under 11kw, and above 11kw;
6. Work Power: 380V / 50HZ, 460V / 230V / 6KV and 10KV voltages can be made for customers;
7. F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853)
