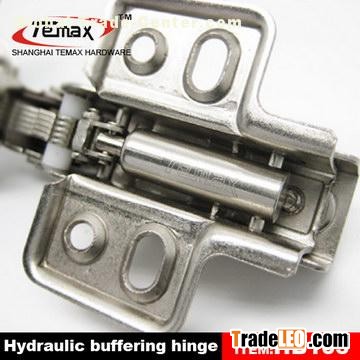

1.Furniture cabinet hydraulic steel door hinge
2.Pass SGS test for 50,000 open-close times
3.Widening manganese steel spring
| Type: | hinge, cabinet hinge, furniture hinge,buffering hinge, hydraulic buffering hinge,inseperable hinge |
| Item No.: | HB103 |
| Material: | Steel |
| Color: | Nickel |
| Size: | full cover, half cover, insert |
| Opening angle: | 95-110 degrees |
| Depth of hinge cup: | 11.3MM |
| Diameter of hinge cup: | 35MM |
| Face panel (K)measurement: | 3-7MM |
| Recommended plank thickness: | 14MM-23MM |
| General usage range: | usage in various types of furnitures or others of all kinds of occasions |
Product adventages:
| Features: | Enjoy long using life. |
| Strengthened adjustable screw can widen the adjustable ranges and longer using life. | |
| Widening manganese steel spring,can disperse force when the hinge closed. Strengthened spring, thickness 2.5mm instead of common one thickness: 1.5mm | |
| Adopt advanced hydraulic system,longer life time,smaller volume | |
| Quality: | SGS test: |
| Passed 75 pounds load | |
| Passed over 50,000 pen-close | |
| Passed salt and mist for over 48 hours | |
| Work: | Furniture hinge inseparable/fixed fitting |
| Finish:brass plated→nickel plated→antirust oil,rustproof more efficiently |
