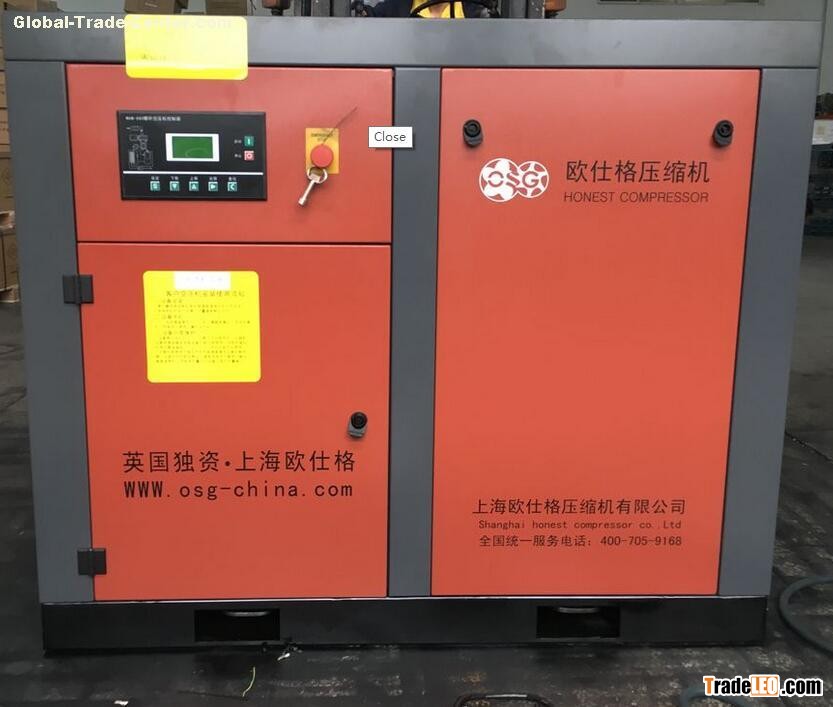

Brand:OSG
Model:EU-22A
MOQ:1 Pieces
Product Description
The EU series features
Low noise, high temperature resistant.
The compressor is a complete unit.
Pipeline component quantity controls in a minimum, easy maintenance.
Little and dainty, compact structure, stable running, simple operation and easy to understand.
| Model:EU-22XA |
| |||
| Power(KW) | 22 KW |
| ||
| Horse(HP) | 30HP |
| ||
| Pressure | Bar | M³/Min |
| |
|
| 7 | 100 |
| |
|
| 8 | 115 |
| |
|
| 10 | 145 |
| |
|
| 13 | 188 |
| |
| F.A.D | m³/min | L/min | CFM |
|
|
| 3.7 | 3700 | 130 |
|
|
| 3.5 | 3500 | 120 |
|
|
| 3.1 | 3100 | 109 |
|
|
| 2.6 | 2600 | 92 |
|
| Exhaust temperature | ≤ Ambient temperature +8℃ |
| ||
| Intake air temperature | ≤45 ℃ |
| ||
| Noise dB(A) | ≤68±2 |
| ||
| Oil content (ppm) | ≈ 3 |
| ||
| Power V/Pb/Hz | 380/3/50 |
| ||
| Long(m) × Wide(mm) × High(mm) | 1290*900*1190 |
| ||
| Weight (kg) | 600 |
| ||
| Diameter of outlet | 1" |
| ||
