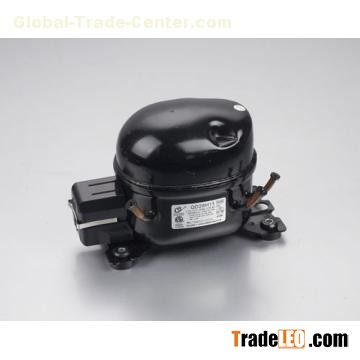

QD28H11, according to our design, it is suitable for water dispensers, ice-makers, small refrigerators. It could be changed according to customer`s requirements. Our engineers would provide their best suggestions for all of customers.

The information about QD28H11 in more details is located in the table bellows. If you have any further question about it, please feel free to contact us directly via email or phone.

Characteristic: Value

Approve: UL

Refrigerant: R134a

Motor Type: RSIR

Cooling: Static Cooling

Throttle: Capillary

Application: LBP

Displacement: 2.8 cm3

Capacity: 82W

Input Power: 75W

Current: 1.05A

COP(W/W): 1.10

Working Voltage Range: 103V~127V

Oil Style: Polyolester oil

Oil Value: 15010 ml

Weight(with oil): 5kg

Quantity per pack format: 120PCS

Diameter of suction tube(inner diameter): φ6.2mm

Diameter of discharge tube(inner diameter): φ5.1mm

Diameter of access tube(inner diameter): φ6.2mm

Material of suction.access.discharge tubes: Cu-plated steel

Noise: 38dB(A) (GB/T9098-2008)

vibration: 0.6m/s2

Shielding gas: Dry air 1.3~1.7bar(dew point -60°C)

Overload Protector: DRB28N61A1

PTC Starter: QP2-4R7
