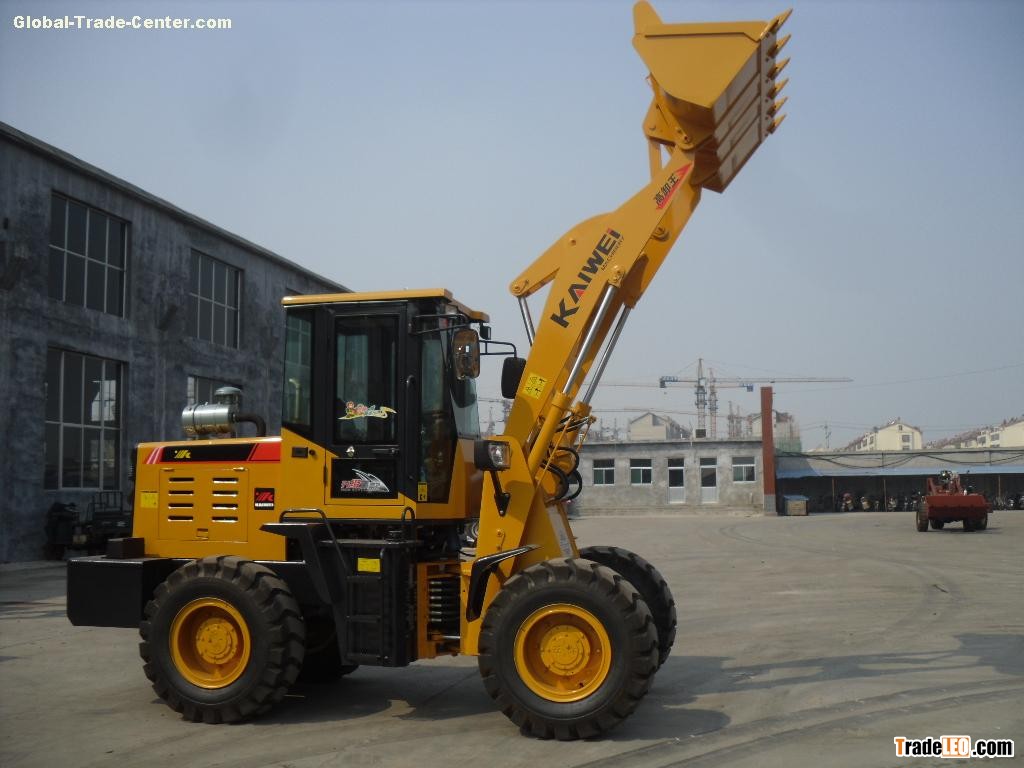

Brand:kaiwei
Model:ZL18
MOQ:1 Sets
Send Inquiry
| Specification | overall weight(kg) | 4100 |
| L×W×H（mm） | 5700*1850*2700 | |
| Rated bucket capacity(m3) | 1 | |
| Rated load(kg) | 1800 | |
| dump height (mm) | 2800/3150 | |
| Bucket indicator | YES | |
| Engine | Brand and modle | Weichai 4102 |
| Type | Four strokes, Water cooling, Inline, injecting combustion chamber | |
| Rated power（kw） | 47 | |
| Rated speed(r/min) | 2400 | |
| Transmission system | Model of torque converter | YJ265 |
| Type | single-phase single-stage radial-inward turbine triplex | |
| Gearbox type | Fixed-spindle power shift | |
| Gear shift | 2 gears ahead,2 gear astern | |
| Hydraulic system | Working pressure(Mpa) | 16 |
| Capacity of tank(L) | 60 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 36±1° | |
| Min turning radius(mm) | 4500 | |
| Brake system | Brake type | Oil brake(Vacuum booster) |
| Tire | Standard tire | 20.5/70-16/17.5-16 |
