I.      Work Flow

         Un-coiling àfeeding àroll forming àhydraulic cutting àproduct table

II.   Main Components

1.       Passive decoiler

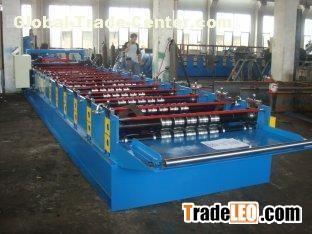

2.       Main forming machine

3.       Cutting device

4.       Hydraulic station

5.       Product table

6.       PLC control cabinet

III.Main Technical Data

1.     Decoiler: manual decoiler, capacity 5 tons, inner diameter 460-520mm

2.     Main forming machine:

1)    Suitable material: pre-painted or galvanized coil

Coil thickness: 0.30.8mm

2)    Forming speed: 12-16m/min

3)    Forming stands: 18 stands

4)    Size of roll shaft: 70mm

5)    Roll shaft material: high grade 45# steel(heat treatment)

6)    Roller material: high grade 45# steel (heat treatment), coated with hard chrome

7)    Main motor power: 5.5KW

8)    Way of drive: 12A chain

9)    Chain material: high grade 45# steel, HRC45-50°

10)   base frame: high grade channel steel, wallboard structure, stresses relieved treatment, sidewall panel 18mm

3.     Hydraulic cutting device:

1)    Hydraulic station power:
