PVC Type Calcium Sulphate Raised Floor - Sell

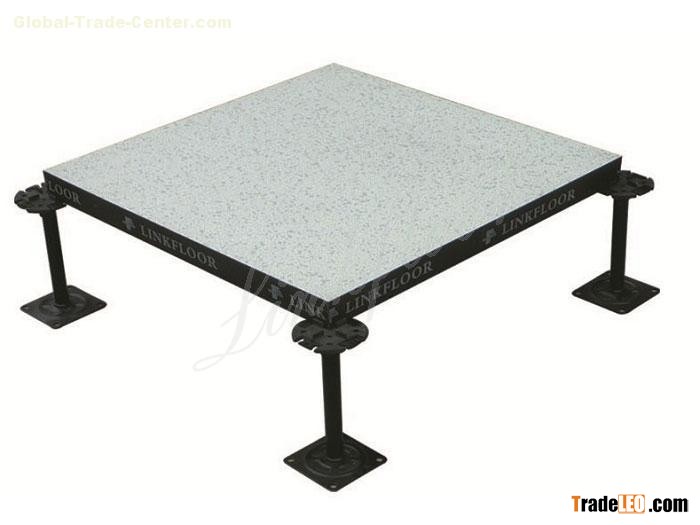

PVC Type Calcium Sulphate Raised Floor

2016-09-26 21:37 Views:287

Price:0.00 USD/-
Brand:-
Model:-
MOQ:-0 -

Description of PVC Type Calcium Sulphate Raised Floor

Raised flooring system is made of calcium sulphate, a mineral inert that is fire-proof. The density is 1450kg/m3 and the thickness ranges 28mm and 30mm. Each panel is made of particular firbres that allows for the panels to be dense, compact and capable of blocking high noise levels. The density of the panels allows for greater stability and tolerance of various temperatures and humidity. Each panel is a 600mm by 600mm square shape. You can design the panels to your preference including an optional 3 layered panels or without a upper finish.

PVC Type Calcium Sulphate Raised Floor (CSP-P)

Computer Floor size: 600mmx600mm

Thickness: 28mm, 30mm(without top finish)

Top finish: PVC tile(1.5mm, 2.0mm, 2.5mm, 3.0mm thickness is available)

Bottom finish: Aluminum foil, Galvanized steel sheet , Coated steel sheet

TECHNICAL SPECIFICATION

General Characteristics
Size				600x600±0.3mm
Thickness without covering				28±0.3mm			30±0.3mm
Panel weight (kg)				15.4±3%			16.5±3%
Density (kg/m3)				1500±50
Walking sound level at 500Hz				20dB
Fireproof rating				Class A
Fire rating				90 minutes
Size variations after 24 h of immersion into water				0.3%
Max. water absorption				20%
Electrical resistance for non-conductive panels(Ohm)				106-1010
Load capability
Structure Panel Load 2.0mm deflection	CSP-H		CSP-P			CSP-B
Thickness of core	28mm	30mm	28mm		30mm	28mm		30mm
Concentrated Load (N)	5000	5500	4000		4500	6000		6500
Uniform Load(N/m2)	25000	18000	15000		22000	29000		32000
Ultimate Load (N)	15000	15000	12000		13500	18000		19500
Impact Load(N)	670	670	670		670	670		780
