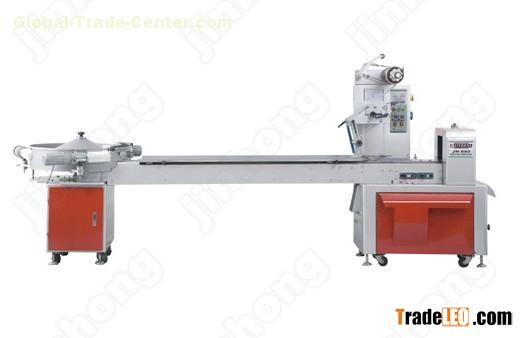

- Product Name: JH-880L Lollipop Pillow Packing Machine
- Model No.: JH-880L
- Place of Origin: CHINA
- Packaging: WOODEN CASE
- Brand: JINHONG
- Delivery Time: 30
- Min. Order: 1
- Certificate: CE
- Functions:
1. It applies for packing special long candy and other solid food with regular shape, new structure, pretty looking, low noise, working smoothly, low fault occuring and convient to repair.
2. AC mator with transducer, controlled with infinite speed control,high precision,power saving so that it can extend the usage term ,also it can be dynamic regulated when its working.
3. Controlled by LCD computer, photoelectric color control patch sensor, traced bi-directional with high speed, precise design so that the fault can be removed effective to avoid material waste.
4. It has intelligent temperature controller with high veracity, show direct viewing and convenient enactment.
5. The parts of the machine contacted with foods are made of stainless steel and up to be healthy standards.
6. rotary type material feeding device can be adjusted optional without any interval.
7. Overlarge candy settling plate are working sectionally and bi-directional, low empty package.
8. It can be equipped with printer, auto hopper, stainless steel crust to use.
Standard specifications:
The characteristics of halving packing
(1)The width of the cutter is 100mm and the gap between up cutter and down cutter is 40mm.
(2)The cross seal has 4 vertical stripes, the scissors edge is with saw-tooth Pattern. (Heat sealing)
(3)The vertical seal is with cellular pattern and the width of the seal is 8mm. (Heat sealing)
Adjusting the dimension and position of the packing film
(1)Length of the cursor: 80mm-140mm
(2)Width: 50mm-180mm
The material of the packing film
BOPP+CPP, PET+CPP and other composite material.
Shape of the packing and candy sizes
Ball lollipop with diameter: 18mm-25mm
Packing speed:
10-280grains/minute
Dimension of the machine (LxWxH)
Exterior dimension (LxWxH): 3965x1305x1586
Voltage: 220 (adjustable according to local voltage)
Total power (KW): 3.7
Net weight (KG): 720
Exterior Package dimension (LxWxH):
1230x1150x1210=1.71CBM
1130x1070x1780=2.47CBM
2450x540x330=0.43CBM
Gross weight (KG): 850
