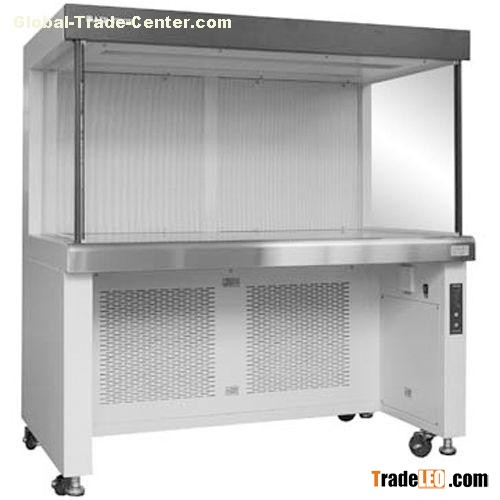

Horizontal Laminar Flow Hood
2016-09-26 22:01  Views:213
Price:0.00 USD/-
Brand:-
Model:-
MOQ:-0 -
Send Inquiry

Horizontal Clean Bench Series:

  • Compact air supply in  the front and open uniform air exhaust with large area
  • Integrative stainless  steel worktable with curving side in the front
  • One touch velocity  control device&digital display
  • Mutual exclusive light  and sterilizing system






Model ZH-840 ZH-1300 ZH-840-U ZH-1300-U
Cleanliness ISO Class 5,Class 100(Fed 209E)
Air Velocity ≥0.3m/s(Adjustable)
Noise ≤62dB(A)
Illuminance ≥300Lx
Power Supply ~220V/50Hz
Input Power 300W 600W 300W 600W
Weight 125kg 170kg 125kg 170kg
Working Dim. 720*650*570mm 1180*650*570mm 720*650*570mm 1180*650*570mm
Overall Dim. 840*825*1430mm 1300*825*1430mm 840*825*1430mm 1300*825*1430mm
Size&No.of HEPA 760*610*50*① 610*610*50*② 760*610*50*① 610*610*50*②
Size&No.of Light or UV Lamp 18w*② 30w*② 18w*①/20w*① 30w*①/30w*①
No.of colony / ≤0.5/Dish(Φ90)·H
No.of Operator Single/S Double/S Single/S Double/S



  • Inclined type operating area based on human engineering
  • Air volume  adjustable system with high efficiency and low consumption
  • Mutual exclusive  light and sterilizing system
  • Digital display,  human touch




Model ZH-CJ-1B ZH-CJ-1C ZH-CJ-1BU ZH-CJ-1CU
Cleanliness ISO Class 5,Class 100(Fed 209E)
Air Velocity ≥0.3m/s(Adjustable)
Noise ≤62dB(A)
Illuminance ≥300Lx
Power Supply ~220V/50Hz
Input Power 250W 500W 250W 500W 600W
Weight 100kg 160kg 100kg 160kg 260kg
Working Dim.(mm) 820*480(300)*600 1680*480(300)*600 820*480(300)*600 1680*480(300)*600 1700*560*720 /W
Overall Dim.(mm) 900*700*1450 1760*700*1450 900*700*1450 1760*700*1450 1780*780*1820
Size&No.of HEPA 820*600*50*① 820*600*50*② 820*600*50*① 820*600*50*② 840*680*69*②
Size&No.of Light or UV Lamp  18w*① 36w*① 18w*①/20w*① 36w*①/40w*① 36w*①/40w*①
No.of colony / ≤0.5cfu*0.5h
No.of Operator Single/S Double/S Single/S Double/S Double/S
