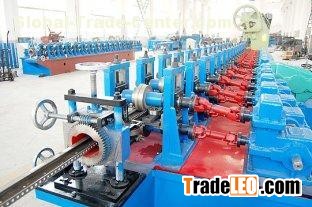

GY180 Roll Forming Machine, Cold Roll Froming Machine
The roll forming machine is widely used in manufacturing light steel keel, door frame, rack, stud&track, c/z/u purlin, etc. The machine is used to manufacture coil steel directly into cold-forming steel frame as required, such as light-gauge steel, door and window frame, cable bridge, electric cabinet column, guardrail plate, etc. It can form galvanized steel, stainless steel, aluminum sheet, etc.
Machine Components
It mainly includes uncoiler, main forming unit, hydraulic punching unit, automatic cutting unit, output table, hydraulic system, and PLC cabinet, etc.
Parameters
| model | 120 | 150 | 160 | 180 |
| Forming thickness (mm) | 0.5-1.2 | 0.5-2 | 0.5-2.5 | 0.5-3.5 |
| Coil width(mm) | 30-250 | 50-300 | 50-350 | 50-400 |
| Machine power(Kw) | 7.5-11 | 15-30 | 15-45 | 30-75 |
| Work speed(M/min) | 2-25 | 2-25 | 2-20 | 2-15 |
| Shaft diameter(mm) | 40 | 50 | 60 | 70 |
Flow chart
Decoiler -- feeder -- leveler -- roll forming machine -- hole punching unit (optional) -- calibrating straightener -- automatic cutter -- output table -- control
