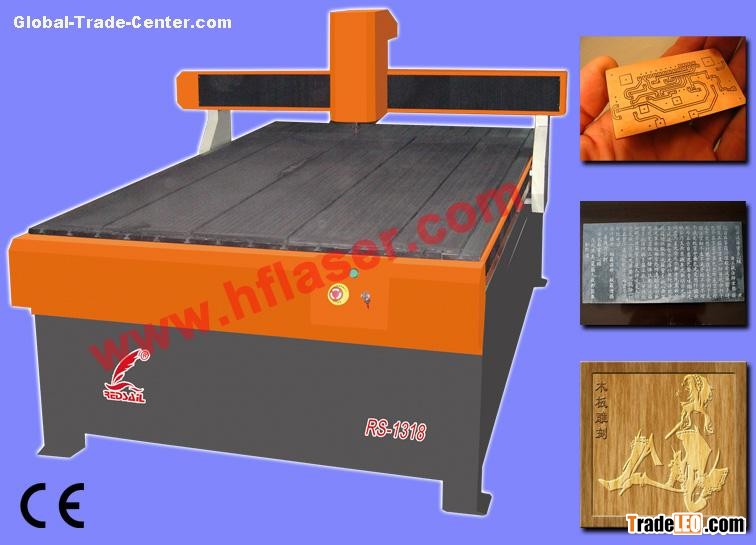

Standard Feature:
X, Y Worktable Size: 1300 x 1800 (mm)
X, Y Work Area: 1300 x 1750(mm)
Gantry Height: 150mm
Drive type: Micro-Step Stepper Motor
Spindle: 2.2KW high speed (water cooling)
Max Moving Speed: 8000 mm/min
Max Machining Speed: 4000mm/min
Resolution: 0.02mm
Repeatability: 0.01mm
Interface: DSP handle (read USB memory directly)
Command code: HPGL, G-code
Spindle tools: :3.175, :6
Power: AC220V±10% / 50~60Hz
Machine dimensions (mm): 2260*1800*1400
Warranty: 12 Months (6 months for Spindle)
