Brand:DEELEE

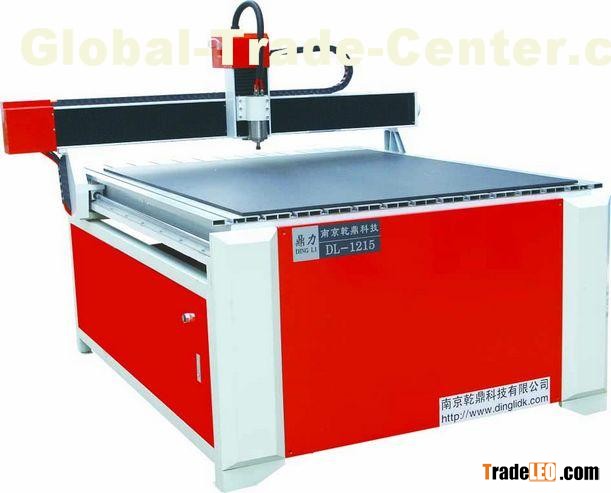

Model:DL-1215
MOQ:1 Sets
Specification:
| Model | DL-1215 |
| Working Zone: (X Y Z) | 1200×1500×110mm |
| Table Size (W×L) | 1420×2780mm |
| Resolution | <0.003mm |
| Cutting Accuracy | ± 0.02/300mm |
| Repositioning Accuracy | ±0.01mm |
| Axis Drive System (X Y Z) | Precision Ball screw |
| Drive Type | stepper motor |
| Spindle | 2.2KW liquid-cooled with 24,000rpm,VFD |
| Max. Working speed | 10,000mm/min |
| Collets Type | 3.175mm/ 4mm/ 6mm |
| Command Code | G*.u00*.mmg*nc.,HPGL |
| Operational System Software | Type 3/Artcam/Castmate/Wentai |
| Control System | NC studio |
| Interface | PCI |
| Max. Power Consumption | 3.2KW |
| Voltage | AC220V±10%/50~60Hz |
| Standard Work Surface | Aluminum profiles |
| Weight | 550kg±10% |
| Warranty | 12 Months (spindle: 6 months) |
Product features
·Casting iron lathe bed, firmness.
·imported ball screw rod and linear guide rail, high precision.
·High subdivision step motor, high speed, low noise and powerful.
·Brushless water cooled spindle with 24,000rpm,VFD, Long life time.
·Connect with all kinds of 3D engraving software.
·Software update timely.
·DSP control system optional.
·High-power, deeply incise.
Applications
Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models: engraving fine window, fencing and wall patterns, etc.
Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
Label: engraving character, number, and other pattern on label for products and on product directly.
Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
