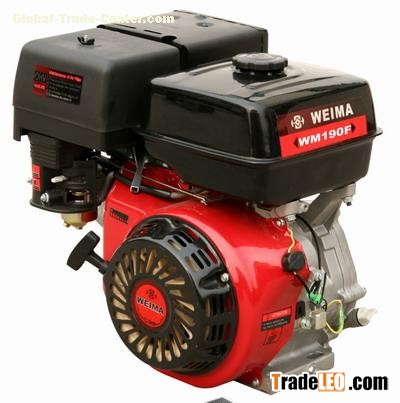

Model     WMvalue="190" tcsc="0" unitname="F" w:st="on">190F0(E) WMvalue="190" tcsc="0" unitname="F" w:st="on">190F-L

Bore×Stroke(mm)  90×66     90×66

Displacement(ml)   420  420

Compression Ratio 8.3:1       8.3:1

Max.power outputHP(kw)/rpm     16(11.8)3600  16(11.8)3600

Rated power(kw)/rpm   11.4(10.6)/3600     11.4(10.6)/3600

Max.torque(N.m)   28/2500   50/1250

Fuel tank capacity(L)     6.5

Engine oil capacity(L)    1.1

Oil consumption(g/kw.h)       374

Ignition system      Transistor magneto

Starting system      Recoil start

Engine Type    Single cylinder,4 stroke,forced air cooling,OHV

N.W./G.W.(KGS)   29/32              32/35  33/36

Dimension(L×W×H)mm 490×430×530 / 530×430×530               490×460×530

value="20" tcsc="0" unitname="ft" w:st="on">20FT(set)       244/228   244

Certificate       EPA,EC,CARB
