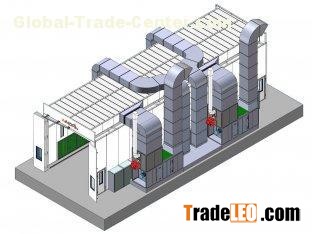

Stainless Steel Diesel Burner Heating Industrial Spray Booths with 50mm Double wall panel
| Booth Dimension | |
| - Internal Size(L×B×H) | 17000×5500×5000mm& 55'7''X18'X16'4'' |
| - External Size(L×B×H) | 17150×7200×5600mm& 56'3''X23'6''X18'4'' |
| Foundation and Floor | |
| - Surface Area | 45M (2sets of exhaust cabinet on side, each size is 15000×1600×660mm) |
| - metal basement | NO |
| Wall and Door | |
| - Steel Wall | Double wall panels of galvanised steel sheet, thickness 75 mm, inside and outside white, insulated with non-combustible rock wool, with tongue and groove interlocking system, plate thickness 0.426mm, width of panels 1150 mm. |
| - Roof Panel | Double wall panels of galvanised steel sheet, thickness 50 mm, inside and outside white, insulated with non-combustible rock wool, with tongue and groove interlocking system, plate thickness 0.326mm, width of panels 1150 mm. |
| - 4-Folded Entrance Door With Safety Glass Window | 1 Unit, 4200×4800mm(WxH) galvanized steel cover frame, fill in rock wool inside, hanger rail |
| - Operator’s Door With Safety Glass Window | 2Units, 800×2000 mm(W×H) |
| Lighting System | |
