Introduction:

1.Windows XP operation with english and chinese can be change any time as you like.

2. The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.

3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out and saving data.

4. Temperature and blower speed can be controlled independently, to meet the high-precision requirements.

5.Effective heating zone length, the heat conduction in full uniform distribution, greatly improving the heating efficiency.

6.Forced cooling system with efficient cooling speed suits all different kinds of lead-free soldering paste.

7. Center support and dual rail is optional.

Specifications:

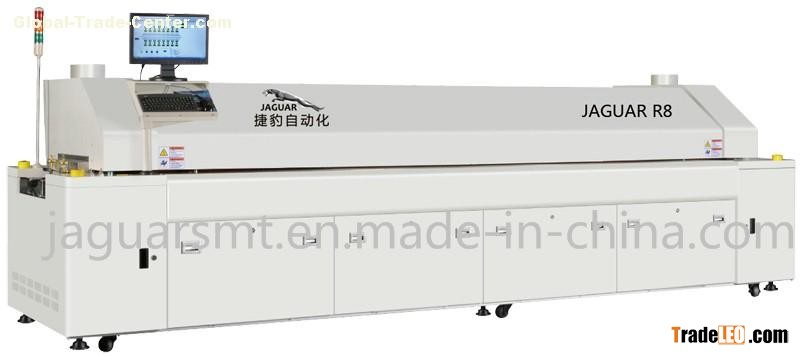

Model R8/R8-N

GENERAL

Outside dimension 5200 x 1400 x 1600mm

Standard color Computer gray

Weight 2200kg

Number of heating zones Up8/bottm8

Length of heating zones 3000mm

Number of cooling zones 2

Exhaust volume 10M3/min*2 exhausts

Standard feature of control system

Power supply 5line, 3phase, 380V 50/60Hz

Start-up power 60KW

Power for warm up 50KW

Normal power 9KW

Heating pattern Up & Bottom Hot air

Warming time Approx. 20minutes

Temp. setting range Room temp-350 degree

Control system PLC+ Computer

Temperature control method PID close loop control +SSR driving

Temperature control precision ± 1.0degree

Temperature deviation on PCB ± 1-2 degree

Data storage Process data and status storage (80GB)

Abnormal alarm Abnormal temperature(extra-high/extra-low temperature)

Board dropped alarm Tower light: yellow-warming: Green-normal: Red-abnormal

Standard features of conveyor system

Max. width of PCB 450mm

Rail Number 1 Lane Or 2 Lane(option)

Components clearance Top/bottom clearance of PCB is 25mm

Conveyor height Light → right(option: R→ L)

PCB transmission agent chain +mesh

Conveyor height 900± 20mm

Conveyor speed range 0~2000mm/min
